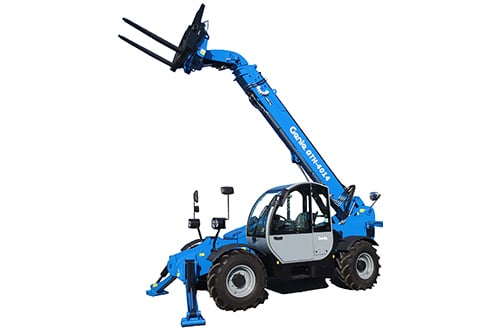

GTH4014 Genie Telehandler Specs & Dimensions (2013 - 2018)

Name: Genie GTH4014 Telehandlers
Brand: Genie

The Genie GTH4014 is a telehandler manufactured by Genie from 2013 to 2018. It has a weight of 10.225 tons and a transport length …

The Genie GTH4014 is a telehandler manufactured by Genie from 2013 to 2018. It has a weight of 10.225 tons and a transport length of 6.06 meters. The maximum horizontal reach is 9.08 meters, and it can lift loads up to 4 tons at the nominal load center of gravity. The lifting height is 13.57 meters, and it has a capacity of 1 ton at full forward reach. The center of gravity is located at 480 millimeters. The travel speed of this telehandler is 26 km/h. It can also lift loads up to 4 tons at the full lift height. The transport width is 2.32 meters, and the transport height is 2.4 meters.

GTH4014

Years of manufacture: 2013—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - GTH4014 Genie

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Centre of gravity: 480 mm

Standard tyres: 405/70-20

Transmission type: HY

Max. Reach horizontal: 9.08 m

Capacity at full forward reach: 1 t

Lifting height: 13.57 m

Capacity at full lift height: 4 t

Weight: 10.225 t

Transport length: 6.06 m

Transport width: 2.32 m

Transport height: 2.4 m

Travel speed: 26 km/h

Engine manuf.: Perkins

Engine type: 854E-34TA

Engine power: 75 kW

Displacement: 3.4 l

Max. torque: 430/1400 Nm

Emission level: IV

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
