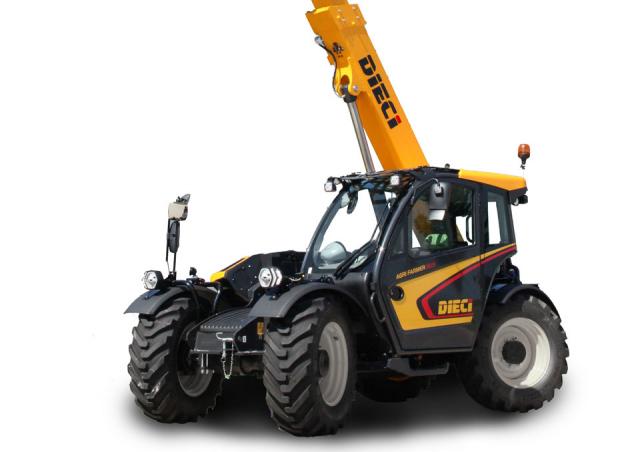

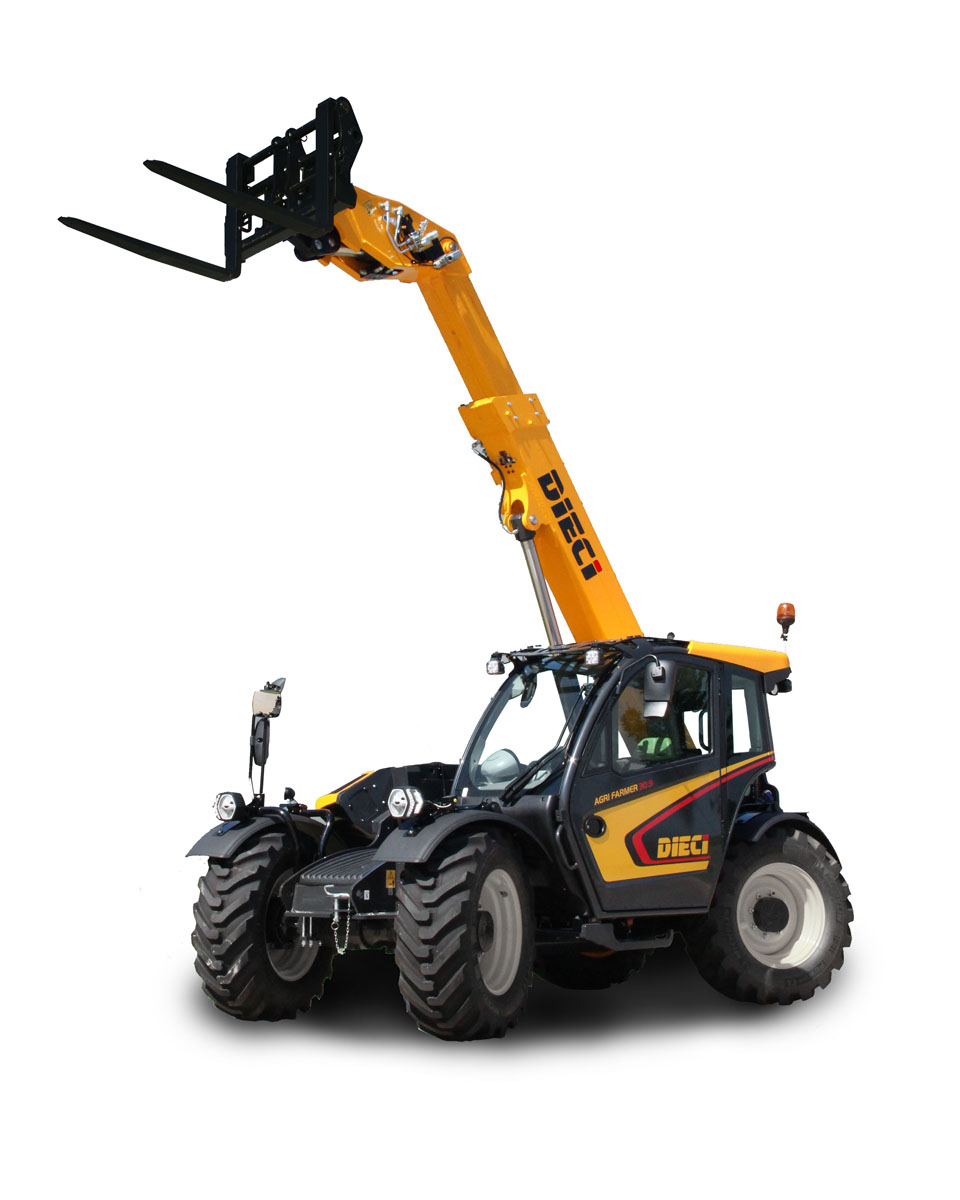

Dieci Dedalus 28.7 VS telehandler specs & dimensions (2013 - 2017)

Name: Dieci Dedalus 28.7 VS Telehandlers
Brand: Dieci

The Dieci Dedalus 28.7 VS is a telehandler manufactured from 2013 to 2017. It weighs 6.1 tons and has a transport length of 4.765 …

The Dieci Dedalus 28.7 VS is a telehandler manufactured from 2013 to 2017. It weighs 6.1 tons and has a transport length of 4.765 meters. The nominal load at the center of gravity is 2.8 tons, and it can lift up to a height of 6.35 meters. At full forward reach, it has a capacity of 0.7 tons. The center of gravity is located at 500 millimeters. It can also lift a maximum capacity of 2 tons at its full lift height. The transport width is 2 meters, and the transport height is 2.08 meters.

Dedalus 28.7 VS

Years of manufacture: 2013—2017

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Dedalus 28.7 VS Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.8 t

Model series: Dedalus

Centre of gravity: 500 mm

Standard tyres: 405/70x20

Transmission type: W

Max. Reach horizontal: 3.65 m

Capacity at full forward reach: 0.7 t

Lifting height: 6.35 m

Capacity at full lift height: 2 t

Weight: 6.1 t

Transport length: 4.765 m

Transport width: 2 m

Transport height: 2.08 m

Travel speed: 35 km/h

max. climbing ability: 40 %

Engine manuf.: Kubota

Engine type: V3800CR-TE 4

Engine power: 74.5 kW

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, engine manufacturer, emission rating, aspiration, rated speed, engine output - net, engine output - gross, tyre - front size, tyre 2 - front size option, tyre 3 - front size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
