Agri Plus 40.7 VS EVO2 Dieci Telehandler Specs & Dimensions (2013 - 2020)

The Dieci Agri Plus 40.7 VS EVO2 is a telehandler manufactured from 2013 to 2020. It has a weight of 7.7 tons and a transport leng…

The Dieci Agri Plus 40.7 VS EVO2 is a telehandler manufactured from 2013 to 2020. It has a weight of 7.7 tons and a transport length of 5.075 meters. The maximum horizontal reach is 3 meters, and it can lift a nominal load of 4 tons at the center of gravity. The lifting height is 7 meters, and it has a capacity of 1.4 tons at full forward reach. The center of gravity is located at 500 millimeters. It has a travel speed of 40 km/h and can climb slopes with a maximum gradient of 60 percent. The capacity at full lift height is 2.6 tons. The transport width is 2.26 meters, and the transport height is 2.445 meters.

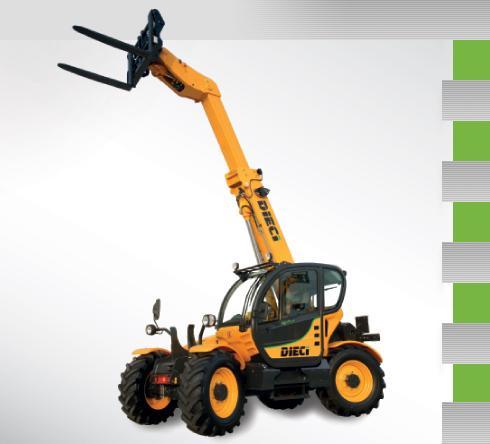

Telehandlers Dieci Agri Plus 40.7 VS EVO2

Technical specs - Agri Plus 40.7 VS EVO2 Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Model series
Agri Plus
Centre of gravity
500 mm
Standard tyres
400/70x24"
Transmission type
W
Max. Reach horizontal
3.90 m
Capacity at full forward reach
1.4 t
Lifting height
7.00 m
Capacity at full lift height
2.6 t
Weight
7.7 t
Transport length
5.075 m
Transport width
2.26 m
Transport height
2.445 m
Travel speed
40 km/h
max. climbing ability
60 %
Engine manuf.
FPT
Engine type
F4HFE413B*A
Engine power
103 kW
Displacement
4.485 l
No. of cylinders
4
Emission level
IIIB/Tier 4i

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, cab position...

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
