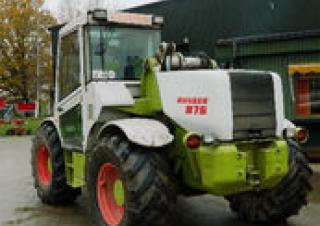

Ranger 975 Plus Claas Telehandler Specs & Dimensions (1999 - 2001)

The Claas Ranger 975 Plus telehandler, manufactured from 1999 to 2001, weighs 7.5 tons. It has a maximum horizontal reach of 3.8 m…

The Claas Ranger 975 Plus telehandler, manufactured from 1999 to 2001, weighs 7.5 tons. It has a maximum horizontal reach of 3.8 meters and a lifting height of 7 meters. The nominal load at the center of gravity is 3.3 tons, and it can carry a capacity of 1.5 tons at full forward reach. The center of gravity is located at 500 millimeters. At full lift height, it can handle a capacity of 3.3 tons.

Telehandlers Claas Ranger 975 Plus

Technical specs - Ranger 975 Plus Claas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.3 t
Model series
Ranger
Centre of gravity
500 mm
Standard tyres
15.5x24
Transmission type
W
Max. Reach horizontal
3.8 m
Capacity at full forward reach
1.5 t
Lifting height
7 m
Capacity at full lift height
3.3 t
Weight
7.5 t
Engine manuf.
Perkins
Engine type
1004.4T
Engine power
79 kW

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load...

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
