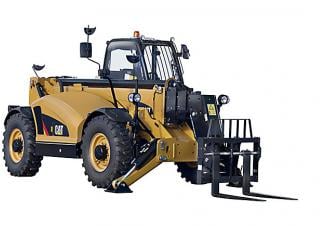

TH417C Caterpillar - Technical specs

Nominal load at COG 4 t
Standard tyres 14.00-24 16 PR
Centre of gravity 500 mm
Max. Reach horizontal 12.7 m
Capacity at full forward reach 0.5 t
Lifting height 17.3 m
Capacity at full lift hight 3 t
Weight 12.44 t
Transport length 6.782 m
Transport width 2.44 m
Transport height 2.989 m
Travel speed 32 km/h
Engine manuf. Caterpillar
Engine type C3.4B
Engine power 75 kW
Engine power 101 HP
Displacement 3.4 l
Max. torque 420/1400 Nm
Cylinder bore x stroke 99x110 mm
Emission level III b
Transmission type ###
max. climbing ability ###
Dimension lxwxh ###
Revolutions at max torque ###
No. of cylinders ###
Weight ###
Cab Position ###
Chassis Type ###
Levelling - Chassis ###
Stabilisers ###
Drive - 2W / 4W ###
Transmission Type ###
Telematics Available ###
Engine Manufacturer ###
Engine Model ###
Emission Rating ###
Aspiration ###
Engine Output - Gross ###
Torque ###
Tyre - Front Size ###
Service Brake - Type ###
Service Brake - Location ###
Length - Front Of Carriage ###
Height - Over Cab ###
Width - Operating ###
Wheelbase ###
Ground Clearance ###
Width - Cab ###
Boom Angle - Maximum ###
Lift Height - Maximum ###
Reach - Maximum ###
Reach - At Maximum Lift Height ###
Reach - Ground With Maximum Capacity ###
Unstabilised Lift Height - With Maximum Capacity ###
Stabilised Lift Height - With Maximum Capacity ###
Turning Radius - Over Tyres ###
Breakout Force ###
Lift Capacity - Maximum ###
Lift Capacity - To Max Height ###
Lift Capacity - To Max Reach ###
Unstabilised Lift Capacity - Maximum ###
Unstabilised Lift Capacity - To Max Height ###
Unstabilised Lift Capacity - To Max Reach ###
Stabilised Lift Capacity - Maximum ###
Stabilised Lift Capacity - To Max Height ###
Stabilised Lift Capacity - To Max Reach ###
Fuel Tank ###
Number Of Boom Sections ###
Load Centre ###
Lift Capacity - Fork Maximum ###
Raise Time - Boom ###
Extend Time - Boom ###
Speed - Forward Maximum ###
Operating Weight ###

TH417C Caterpillar - Special equipment

  • Diesel particulate filter
  • StVZO Equipment
  • Inclination correction
  • Side displacement
