TH406C Caterpillar Telehandler Specs & Dimensions (2012 - 2017)

Name: Caterpillar TH406C Telehandlers
Brand: Caterpillar

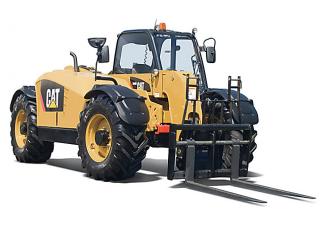

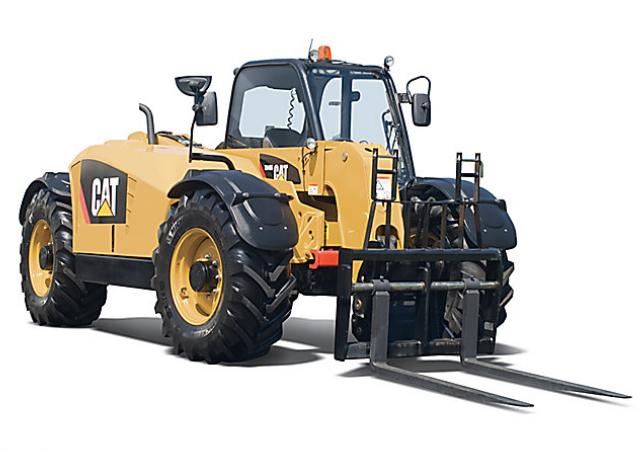

The Caterpillar TH406C is a telehandler manufactured by Caterpillar from 2012 to 2017. It weighs 8.33 tons and has a transport len…

The Caterpillar TH406C is a telehandler manufactured by Caterpillar from 2012 to 2017. It weighs 8.33 tons and has a transport length of 4.85 meters. The telehandler has a nominal load at COG of 3.7 tons and a lifting height of 6.1 meters. It has a capacity of 1.5 tons at full forward reach and a travel speed of 40 km/h. The machine can lift up to 2.5 tons at its full lift height. It has a transport width of 2.382 meters and a transport height of 2.339 meters.

TH406C

Years of manufacture: 2012—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - TH406C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.7 t

Model series: TH

Standard tyres: 15.5/80-24 16PR

Max. Reach horizontal: 3.109 m

Capacity at full forward reach: 1.5 t

Lifting height: 6.1 m

Capacity at full lift height: 2.5 t

Weight: 8.33 t

Transport length: 4.85 m

Transport width: 2.382 m

Transport height: 2.339 m

Travel speed: 40 km/h

Engine manuf.: Caterpillar

Engine type: C3.4B

Engine power: 75 kW

Displacement: 3.4 l

Emission level: Tier 4 f

More technical details, like: centre of gravity, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download specalog and datasheets (PDF)

TH406C Caterpillar Specification for Europe (EN)

Buy & Rent

Used Caterpillar Telehandlers for sale

LECTURA analyzes fresh deals from many sources about Telehandlers.
Compare first rate deals on liked classified portals presenting used Telehandlers to buy in many countries.

Get in touch for more details:

Compare Caterpillar TH406C with similar Telehandlers

Caterpillar TH406C

Nominal load at COG:: 3.7 t

Model series:: TH

Standard tyres:: 15.5/80-24 16PR

Max. Reach horizontal:: 3.109 m

Komatsu WH609

Nominal load at COG:: 3.5 t

Model series:: WH

Standard tyres:: 405/70-24 PR14

Max. Reach horizontal:: 5.2 m

Merlo TF 33.9 CS-120

Nominal load at COG:: 3.3 t

Model series:: TF

Standard tyres:: 405/70 R24 14 PR

Max. Reach horizontal:: 6.7 m

Caterpillar TH 82

Nominal load at COG:: 4 t

Model series:: TH

Standard tyres:: 15.5-25

Max. Reach horizontal:: 4.06 m

Haulotte HTL4014

Nominal load at COG:: 4 t

Model series:: HTL

Standard tyres:: 400/80-24

Max. Reach horizontal:: 9.8 m
