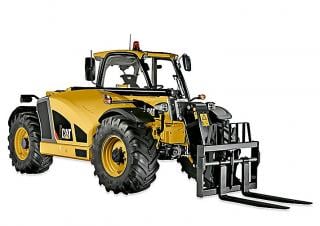

TH3510D Caterpillar - Technical specs

Nominal load at COG 3.5 t
Standard tyres 15.5/80-24
Centre of gravity 500 mm
Transmission type W
Max. Reach horizontal 6.6 m
Capacity at full forward reach 0.5 t
Lifting height 9.8 m
Capacity at full lift hight 0.77 t
Weight 9.149 t
Transport length 5.3 m
Transport width 2.382 m
Transport height 2.475 m
Travel speed 36.5 km/h
Engine manuf. Caterpillar
Engine type C3.4B
Engine power 83 kW
Engine power 111 HP
Max. torque 460 Nm
Emission level Euro IV
max. climbing ability ###
Dimension lxwxh ###
Displacement ###
Revolutions at max torque ###
No. of cylinders ###
Cylinder bore x stroke ###
Weight ###

TH3510D Caterpillar - Special equipment

  • Diesel particulate filter
  • StVZO Equipment
  • Inclination correction
  • Side displacement
