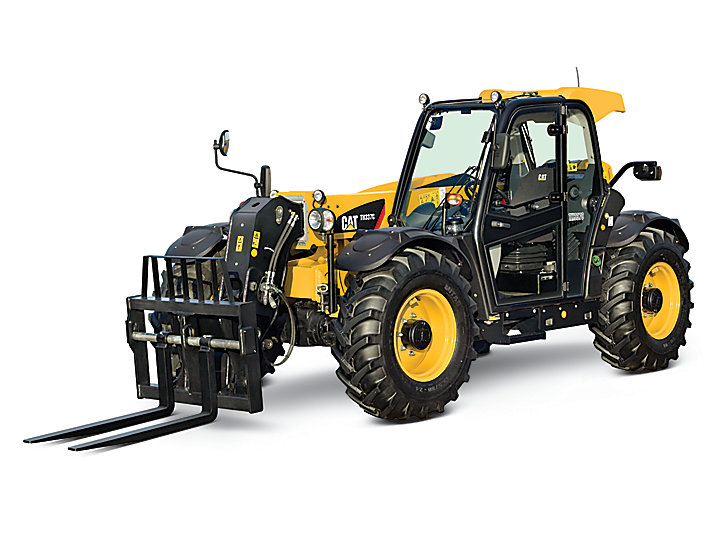

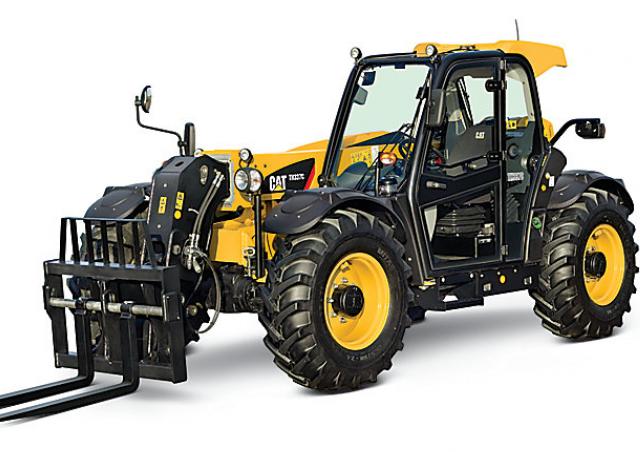

TH337C Caterpillar Telehandler Specs & Dimensions (2012 - 2017)

Name: Caterpillar TH337C Telehandlers
Brand: Caterpillar

The Caterpillar TH337C is a telehandler manufactured by Caterpillar from 2012 to 2017. It has a weight of 8.03 tons and a transpor…

The Caterpillar TH337C is a telehandler manufactured by Caterpillar from 2012 to 2017. It has a weight of 8.03 tons and a transport length of 5.128 meters. The maximum horizontal reach is 3.763 meters, and it can lift a nominal load of 3.3 tons at the center of gravity. The lifting height is 7.3 meters, and it has a capacity of 1 ton at full forward reach. The travel speed of this telehandler is 40 km/h. It can also lift a capacity of 2 tons at its full lift height. The transport width is 2.382 meters, and the transport height is 2.374 meters.

TH337C

Years of manufacture: 2012—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TH337C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.3 t

Model series: TH

Standard tyres: 15.5/80-24 15 PR

Max. Reach horizontal: 3.763 m

Capacity at full forward reach: 1 t

Lifting height: 7.3 m

Capacity at full lift height: 2 t

Weight: 8.03 t

Transport length: 5.128 m

Transport width: 2.382 m

Transport height: 2.374 m

Travel speed: 40 km/h

Engine manuf.: Caterpillar

Engine type: C3.4B

Engine power: 75 kW

Displacement: 3.4 l

Emission level: Tier 4 f

More technical details, like: centre of gravity, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download specalog and datasheets (PDF)
