TX130-40 Case Telehandler Specs & Dimensions (2008 - 2016)

The Case TX130-40 Telehandler, manufactured from 2008 to 2016, weighs 10.2 tons and has a transport length of 6 meters. It has a m…

The Case TX130-40 Telehandler, manufactured from 2008 to 2016, weighs 10.2 tons and has a transport length of 6 meters. It has a maximum horizontal reach of 8.65 meters and a lifting height of 12.3 meters. The nominal load at the center of gravity is 4 tons, and it has a capacity of 0.7 tons at full forward reach and 2.6 tons at full lift height. The center of gravity is located at 500 millimeters. It has a travel speed of 35 km/h and a transport width and height of 2.4 meters and 2.45 meters respectively.

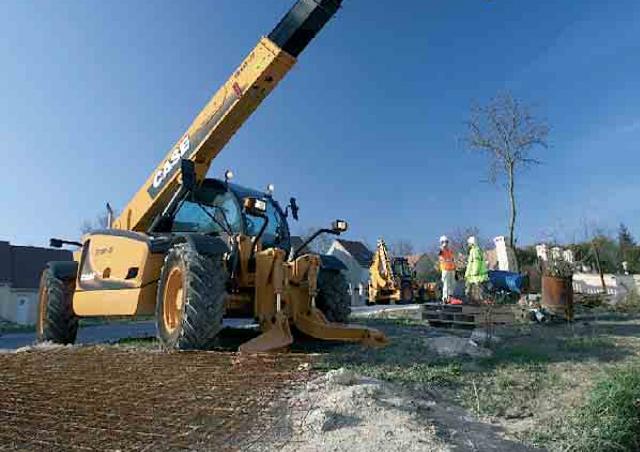

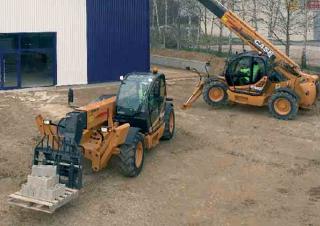

Telehandlers Case TX130-40
Telehandlers Case TX130-40
Telehandlers Case TX130-40
Telehandlers Case TX130-40
Telehandlers Case TX130-40
Telehandlers Case TX130-40

Visit Case live at

Technical specs - TX130-40 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Model series
TX
Centre of gravity
500 mm
Standard tyres
400/70x20
Max. Reach horizontal
8.65 m
Capacity at full forward reach
0.7 t
Lifting height
12.3 m
Capacity at full lift height
2.6 t
Weight
10.2 t
Transport length
6 m
Transport width
2.4 m
Transport height
2.45 m
Travel speed
35 km/h
Engine manuf.
CNH
Engine type
F4GE9484J*60
Engine power
88 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
