    Lectura specs Forklifts Telehandlers Telehandlers Case Case TX130-33 specifications

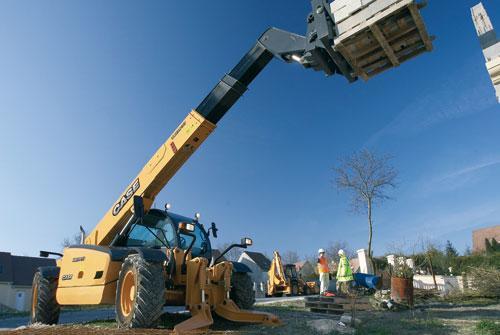

    Case TX130-33 telehandler specs (2008 - 2016)

    Rate this machine now!

    The TX 130-33 telehandler model is manufactured by case. Find and download detailed specs and data sheets for this machine here. ... Read more

    The TX 130-33 telehandler model is manufactured by case. Find and download detailed specs and data sheets for this machine here.

    This telehandler is built to provide up to 74kW or 99 horse power, delivered from its powerful CNH engine to the 9.9t TX 130-33 machine. This case telehandler belongs to the medium sized machine segment in the telehandlers category. The model's dimensions are 5.85m x 2.445m x 2.45m. The size of standard tyres for this case TX 130-33 is 400/70x20. 35km/h is a maximum speed of which this case Telehandler can travel. The model's features include a max. Horizontal reach of 8.75m It can lift 3.3t of nominal load with a 500mm centre of gravity. The TX 130-33 has a lift height of 13m, to which it can lift 2.5t. At full forward reach, this model can control a weight of 11.5t.

    It has been sold without Side displacement, StVZO Equipment and Diesel particulate filter as of 2016. Find detailed specifications and machine details in the original case TX 130-33 datasheet. Available in Italian, French, English, Spanish, Chinese and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    This model can be acquired for a list price between €92,000 and €117,000. Production of the TX 130-33 stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The TX 130-33 case can be compared to several models from other manufacturers. The closest telehandlers based on specification and pricing are the Liebherr TL 436-7, Liebherr TL 432-7 and Merlo TF 33.9 CS-115. At present, other telehandlers, which range from up to are produced by case. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest case TX 130-33 specs data sheet on LECTURA Specs today!

    Technical specs - TX130-33 Case

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 3.3 t
    • Standard tyres 400/70x20
    • Centre of gravity 500 mm
    • Max. Reach horizontal 8.75 m
    • Capacity at full forward reach 11.5 t
    • Lifting height 13 m
    • Capacity at full lift height 2.5 t
    • Weight 9.9 t
    • Transport length 5.85 m
    • Transport width 2.445 m
    • Transport height 2.45 m
    • Travel speed 35 km/h
    • Engine manuf. CNH
    • Engine type F4GE 9484*J6
    • Engine power 74 kW
    • Transmission type ###
    • max. climbing ability ###
    • Dimension lxwxh ###
    • Displacement ###
    • Revolutions at max torque ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###
    • Emission level ###
    • Cab Position ###
    • Chassis Type ###
    • Stabilisers ###
    • Drive - 2W / 4W ###
    • Transmission Type ###
    • Engine Manufacturer ###
    • Engine Model ###
    • Emission Rating ###
    • Aspiration ###
    • Rated Speed ###
    • Engine Output - Net ###
    • Torque ###
    • Tyre - Front Size ###
    • Tyre - Rear Size ###
    • Tyre 2 - Front Size Option ###
    • Tyre 2 - Rear Size Option ###
    • Service Brake - Type ###
    • Service Brake - Location ###
    • Length - Front Of Carriage ###
    • Height - Over Cab ###
    • Width - Operating ###
    • Wheelbase ###
    • Ground Clearance ###
    • Width - Cab ###
    • Boom Angle - Maximum ###
    • Lift Height - Maximum ###
    • Reach - Maximum ###
    • Reach - At Maximum Lift Height ###
    • Reach - Ground With Maximum Capacity ###
    • Unstabilised Lift Height - With Maximum Capacity ###
    • Stabilised Lift Height - With Maximum Capacity ###
    • Turning Radius - Over Tyres ###
    • Breakout Force ###
    • Lift Capacity - Maximum ###
    • Lift Capacity - To Max Height ###
    • Lift Capacity - To Max Reach ###
    • Unstabilised Lift Capacity - Maximum ###
    • Unstabilised Lift Capacity - To Max Height ###
    • Unstabilised Lift Capacity - To Max Reach ###
    • Stabilised Lift Capacity - Maximum ###
    • Stabilised Lift Capacity - To Max Height ###
    • Stabilised Lift Capacity - To Max Reach ###
    • Fuel Tank ###
    • Number Of Boom Sections ###
    • Load Centre ###
    • Lift Capacity - Fork Maximum ###
    • Speed - Forward Maximum ###
    • Operating Weight ###

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

    Special equipment

    • Diesel particulate filter
    • StVZO Equipment
    • Inclination correction
    • Side displacement
