TL470 IIIB Bobcat Telehandler Specs & Dimensions (2014 - 2017)

The Bobcat TL470 IIIB is a telehandler manufactured by Bobcat from 2014 to 2017. It has a weight of 7.13 tons and a transport leng…

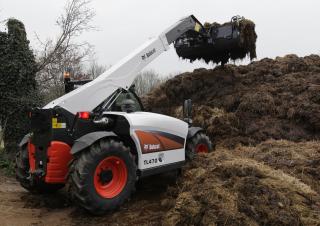

The Bobcat TL470 IIIB is a telehandler manufactured by Bobcat from 2014 to 2017. It has a weight of 7.13 tons and a transport length of 4.869 meters. The maximum horizontal reach is 3.9 meters, and it can lift loads up to 3.5 tons at the nominal load center of gravity. The lifting height is 6.95 meters, and it has a capacity of 1.5 tons at full forward reach. The center of gravity is located at 500 millimeters. It has a travel speed of 40 km/h and a capacity of 3 tons at full lift height. The transport width is 2.3 meters, and the transport height is 2.374 meters.

Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB
Telehandlers Bobcat TL470 IIIB

Visit Bobcat live at

Technical specs - TL470 IIIB Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Centre of gravity
500 mm
Standard tyres
400/70x20
Transmission type
HY
Max. Reach horizontal
3.9 m
Capacity at full forward reach
1.5 t
Lifting height
6.95 m
Capacity at full lift height
3 t
Weight
7.13 t
Transport length
4.869 m
Transport width
2.3 m
Transport height
2.374 m
Travel speed
40 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
89.5 kW
Displacement
3.62 l
Revolutions at max torque
2200 rpm
Max. torque
480 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke, cab position...

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
