TL 470 HF Bobcat Telehandler Specs & Dimensions (2012 - 2013)

The Bobcat TL 470 HF is a telehandler manufactured by Bobcat from 2012 to 2013. It has a weight of 7.13 tons and a transport lengt…

The Bobcat TL 470 HF is a telehandler manufactured by Bobcat from 2012 to 2013. It has a weight of 7.13 tons and a transport length of 4.76 meters. The maximum horizontal reach is 4.01 meters, and it can lift loads up to 4 tons at the nominal center of gravity of 500mm. The lifting height is 6.96 meters, and it has a capacity of 1.5 tons at full forward reach. The travel speed is 30 km/h. It can handle loads up to 3 tons at full lift height. The transport width is 2.3 meters, and the transport height is 2.37 meters.

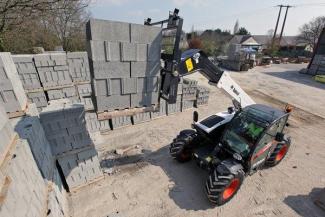

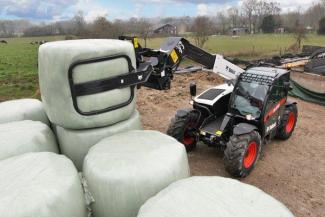

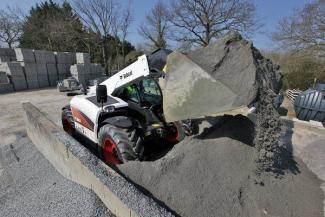

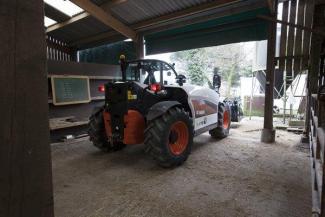

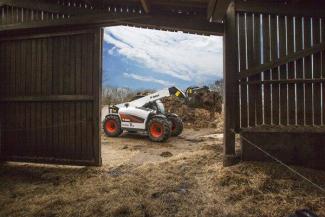

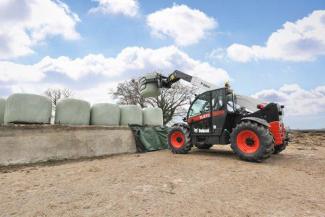

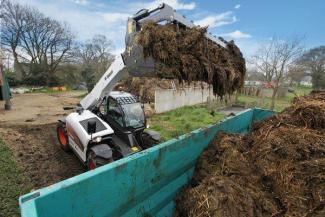

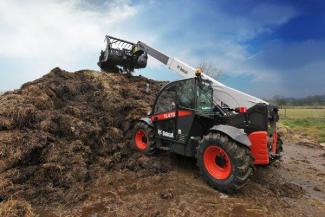

Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF
Telehandlers Bobcat TL 470 HF

Visit Bobcat live at

Technical specs - TL 470 HF Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Centre of gravity
500 mm
Standard tyres
405/70x20
Transmission type
HY
Max. Reach horizontal
4.01 m
Capacity at full forward reach
1.5 t
Lifting height
6.96 m
Capacity at full lift height
3 t
Weight
7.13 t
Transport length
4.76 m
Transport width
2.3 m
Transport height
2.37 m
Travel speed
30 km/h
Engine manuf.
Perkins
Engine type
1104D-44TA
Engine power
96 kW

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
