T 40140 Bobcat Telehandler Specs & Dimensions (2000 - 2004)

Model rating
10,00 / 10

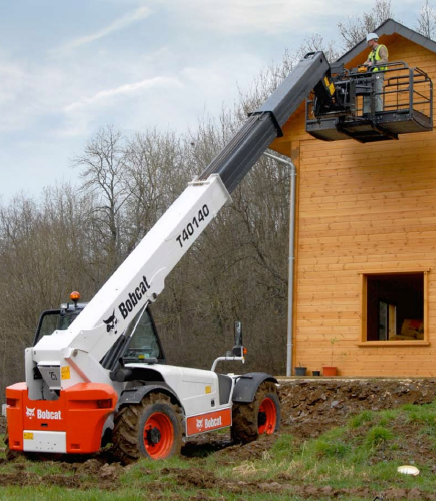

The Bobcat T 40140 is a telehandler manufactured by Bobcat from 2000 to 2004. It has a weight of 10 tons and a transport length of…

The Bobcat T 40140 is a telehandler manufactured by Bobcat from 2000 to 2004. It has a weight of 10 tons and a transport length of 6.061 meters. The maximum horizontal reach is 9.7 meters, while the lifting height is 13.61 meters. The telehandler has a nominal load at the center of gravity of 4 tons and a capacity of 1.3 tons at full forward reach. The center of gravity is located at 500 millimeters. It has a travel speed of 30 km/h and a capacity of 4 tons at full lift height. The transport width is 2.334 meters and the transport height is 2.473 meters.

Telehandlers Bobcat T 40140

Visit Bobcat live at

Technical specs - T 40140 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Model series
R
Centre of gravity
500 mm
Standard tyres
400/70x20
Transmission type
HY
Max. Reach horizontal
9.7 m
Capacity at full forward reach
1.3 t
Lifting height
13.61 m
Capacity at full lift height
4 t
Weight
10 t
Transport length
6.061 m
Transport width
2.334 m
Transport height
2.473 m
Travel speed
30 km/h
Engine manuf.
Perkins
Engine type
1004.4T
Engine power
75 kW

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
