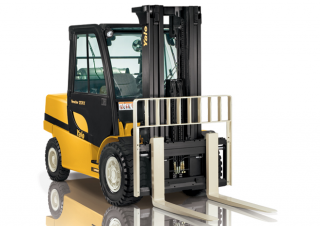

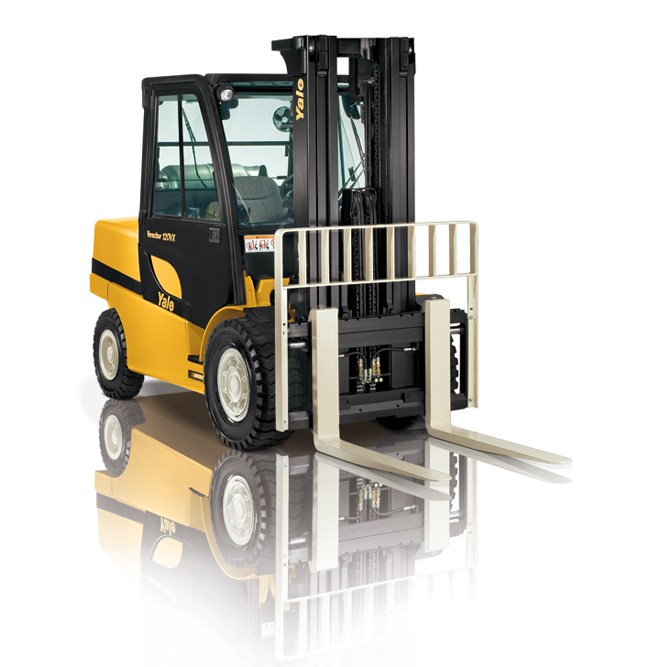

GP120VX Yale LPG Forklift Specs & Dimensions (2019 - 2026)
Visit Yale live at
Technical specs - GP120VX Yale
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 5.443 t
- Centre of gravity
- 610 mm
- Standard tyres
- 2x/2
- Weight
- 7.493 t
- Total width
- 1450 mm
- Construction height
- 2214 mm
- Turning radius
- 2.915 m
- Lifting height
- 2 m
- Travel speed with / without load
- 22.9/23.7 km/h
- Hoisting with / without load
- 0.50/0.51 m/s
- Lowering with load
- 0.51 m/s
- max. climbing ability
- 31 %
- Model series
- GP
- Engine manuf.
- Kubota
- Engine type
- WG3800
- Engine power
- 64 kW
- Displacement
- 3.769 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
More technical details, like: transmission type, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
