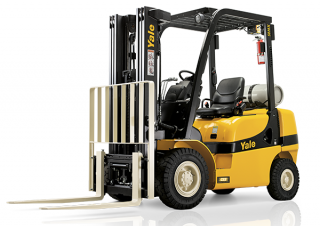

GP040MX Yale LPG Forklift Specs & Dimensions (2019 - 2026)

Nominal load at COG: 1.814t – Centre of gravity: 610mm – Standard tyres: 2x/2 – Weight: 3t – Total width: 1162mm – Construction he…

Nominal load at COG: 1.814t – Centre of gravity: 610mm – Standard tyres: 2x/2 – Weight: 3t – Total width: 1162mm – Construction height: 2170mm

Yale is the manufacturer of the GP040MX LPG forklift. The production years for this model are (2019 - 2026). Find here detailed specs for GP040MX LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

LPG Forklifts Yale GP040MX

Visit Yale live at

Technical specs - GP040MX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.814 t
Centre of gravity
610 mm
Standard tyres
2x/2
Weight
3 t
Total width
1162 mm
Construction height
2170 mm
Turning radius
2.178 m
Lifting height
3.292 m
Travel speed with / without load
18.4/18.6 km/h
Hoisting with / without load
0.65/0.68 m/s
Lowering with load
0.58 m/s
max. climbing ability
36 %
Model series
GP
Engine manuf.
PSI
Engine type
2,4L
Engine power
46 kW

More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
