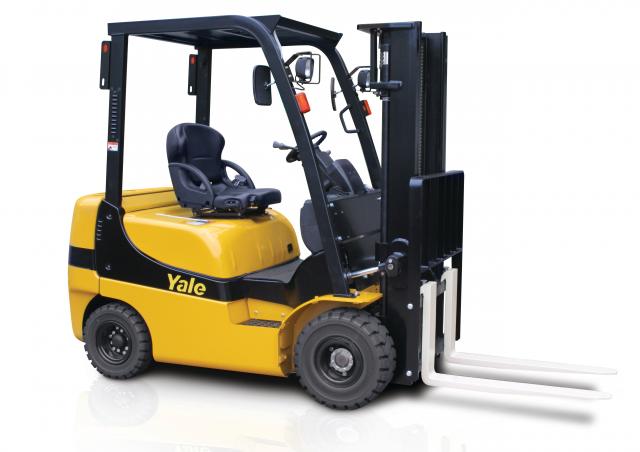

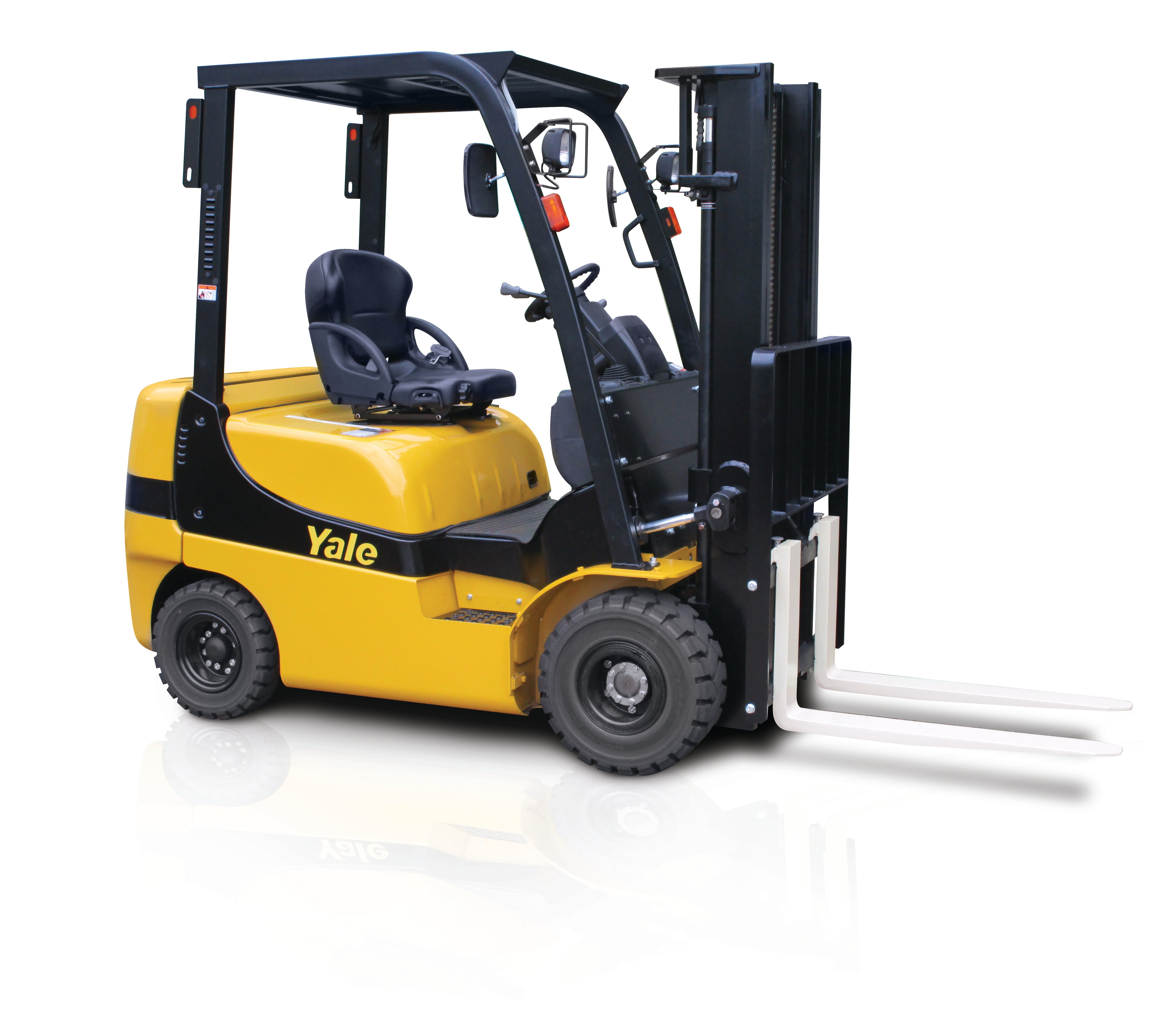

GLP30VX Base Yale LPG Forklift Specs & Dimensions (2019 - 2023)

Nominal load at COG: 3t – Centre of gravity: 500mm – Standard tyres: SE 2x/2 – Transmission type: EW – Weight: 4.612t – Total widt…

Nominal load at COG: 3t – Centre of gravity: 500mm – Standard tyres: SE 2x/2 – Transmission type: EW – Weight: 4.612t – Total width: 1186mm

Yale is the manufacturer of the GLP30VX Base LPG forklift. The production years for this model are (2019 - 2023). Find here detailed specs for GLP30VX Base LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

LPG Forklifts Yale GLP30VX Base

Visit Yale live at

Technical specs - GLP30VX Base Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3 t
Centre of gravity
500 mm
Standard tyres
SE 2x/2
Transmission type
EW
Weight
4.612 t
Total width
1186 mm
Construction height
2185 mm
Turning radius
2.277 m
Lifting height
3.055 m
Travel speed with / without load
19.1/20.3 km/h
Hoisting with / without load
0.53/0.55 m/s
Lowering with load
0.53 m/s
max. climbing ability
25 %
Model series
GLP
Engine manuf.
PSI
Engine type
2.4L
Engine power
44 kW
Displacement
2.4 l
Revolutions at max torque
2000 rpm
Max. torque
164 Nm
No. of cylinders
4

More technical details, like: dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
