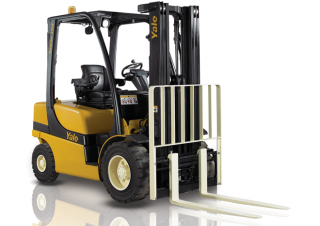

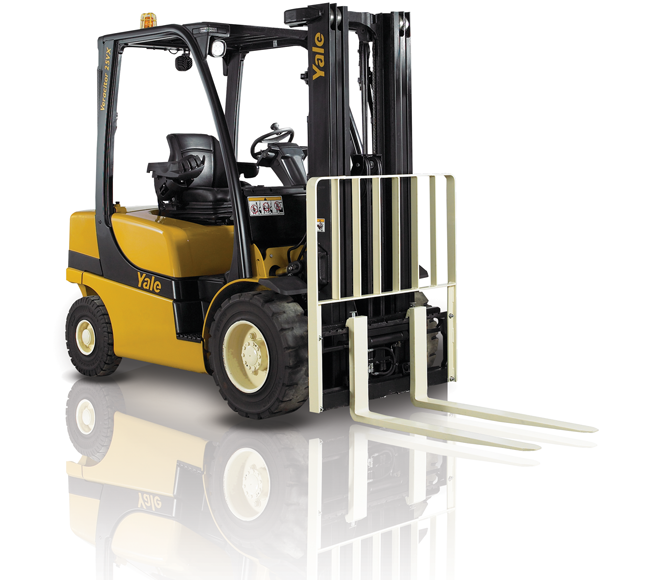

GLP20VX Base Yale LPG Forklift Specs & Dimensions (2019 - 2023)
Visit Yale live at
Technical specs - GLP20VX Base Yale
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2 t
- Centre of gravity
- 500 mm
- Standard tyres
- SE 2x/2
- Transmission type
- EW
- Weight
- 3.563 t
- Total width
- 1157 mm
- Construction height
- 2160 mm
- Turning radius
- 2.149 m
- Lifting height
- 3.25 m
- Travel speed with / without load
- 17.3/18.0 km/h
- Hoisting with / without load
- 0.61/0.63 m/s
- Lowering with load
- 0.58 m/s
- max. climbing ability
- 29.8 %
- Model series
- GLP
- Engine manuf.
- PSI
- Engine type
- 2.4L
- Engine power
- 44 kW
- Displacement
- 2.4 l
- Revolutions at max torque
- 2000 rpm
- Max. torque
- 164 Nm
- No. of cylinders
- 4
More technical details, like: dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
