GLP20SMX Yale LPG Forklift Specs & Dimensions (2022 - 2026)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: 21x8-9-14PR(21x8-9-14PR)/18x7-8-10PR – Weight: 3.05t – Total …

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: 21x8-9-14PR(21x8-9-14PR)/18x7-8-10PR – Weight: 3.05t – Total width: 1135mm – Construction height: 1995mm

Yale is the manufacturer of the GLP20SMX LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for GLP20SMX LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

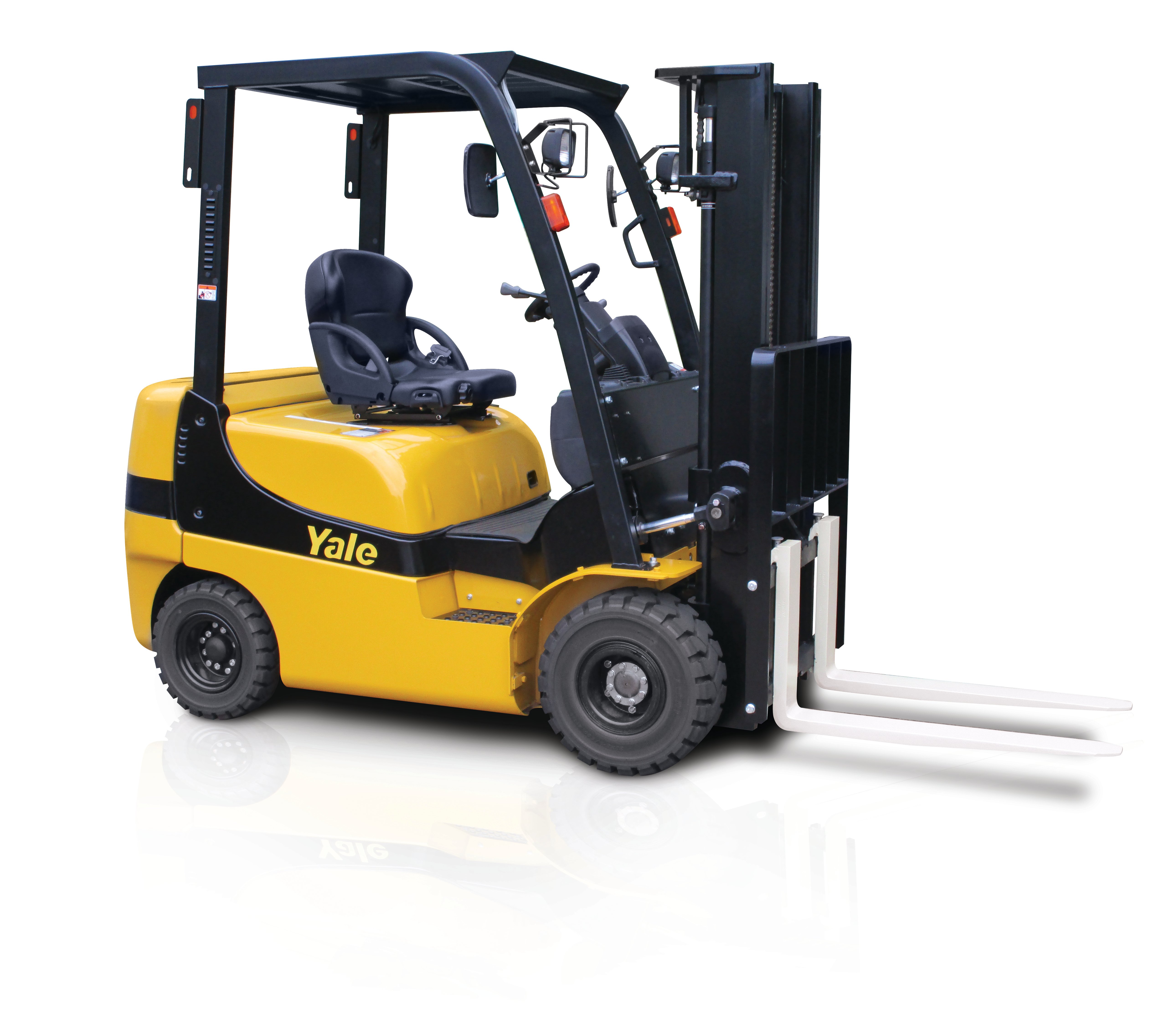

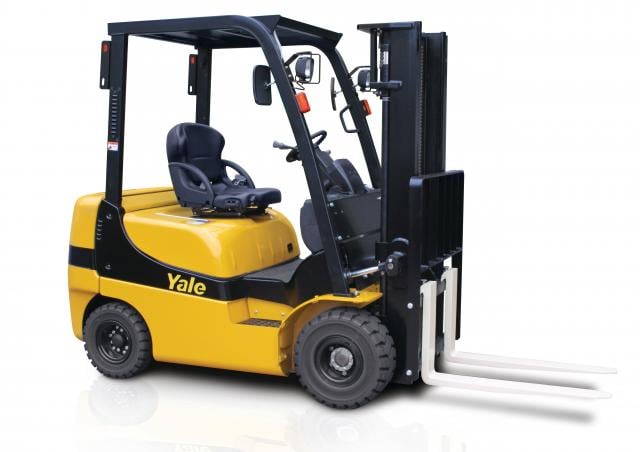

LPG Forklifts Yale GLP20SMX

Visit Yale live at

Technical specs - GLP20SMX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
21x8-9-14PR(21x8-9-14PR)/18x7-8-10PR
Weight
3.05 t
Total width
1135 mm
Construction height
1995 mm
Turning radius
2.03 m
Lifting height
3 m
Travel speed with / without load
18/19.5 km/h
Hoisting with / without load
0.67/0.7 m/s
Lowering with load
0.54 m/s
max. climbing ability
38 %
Model series
GLP
Engine manuf.
GCT
Engine type
K21
Engine power
38.5 kW
Displacement
2.07 l
Revolutions at max torque
2000 rpm
Max. torque
145 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
