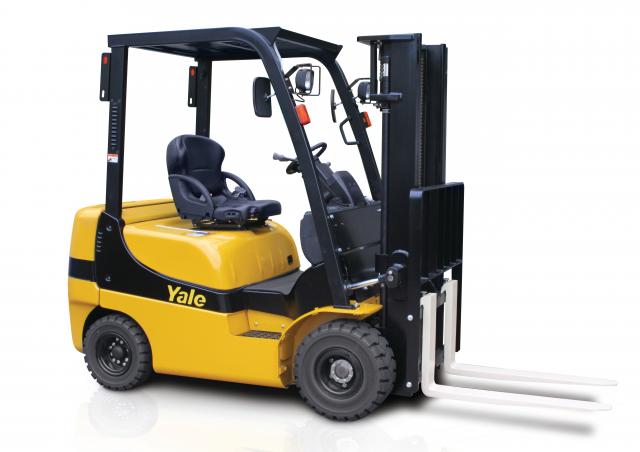

GLP15MX Yale LPG Forklift Specs & Dimensions (2022 - 2026)

Name: Yale GLP15MX LPG Forklifts
Brand: Yale

Nominal load at COG: 1.5t – Centre of gravity: 500mm – Standard tyres: 6.00-9-10PR(21x8-9-14PR)/5.00-8-8PR – Weight: 2.62t – Total…

Nominal load at COG: 1.5t – Centre of gravity: 500mm – Standard tyres: 6.00-9-10PR(21x8-9-14PR)/5.00-8-8PR – Weight: 2.62t – Total width: 1070mm – Construction height: 1995mm

Yale is the manufacturer of the GLP15MX LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for GLP15MX LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

Visit Yale live at

GLP15MX

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - GLP15MX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 1.5 t

Centre of gravity: 500 mm

Standard tyres: 6.00-9-10PR(21x8-9-14PR)/5.00-8-8PR

Weight: 2.62 t

Total width: 1070 mm

Construction height: 1995 mm

Turning radius: 1.96 m

Lifting height: 3 m

Travel speed with / without load: 18/19.5 km/h

Hoisting with / without load: 0.675/0.7 m/s

Lowering with load: 0.54 m/s

max. climbing ability: 47 %

Model series: GLP

Engine manuf.: GCT

Engine type: K21

Engine power: 38.5 kW

Displacement: 2.07 l

Revolutions at max torque: 2000 rpm

Max. torque: 145 Nm

No. of cylinders: 4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

GLP15MX Yale Specification for Global (EN)

Yale GLP15MX overview

Drive

Standard

Simplex mast Operator presence Hydraulic Interlock Traction Interlock Cowl mounted levers Trunnion mount mast Full halogen light kit including turn indicators Head light guards Rotating LED beacon Swing down LPG bracket Small diameter steering wheel Rubber floor mat Entry assist grip Electric directional shift lever Neutral start Reverse alarm Separate inch/brake podal Comprehensive dash display Single element air cleaner Rubber mount rear axle Wide mast with wide field vision

Handling

Options

Engine options – LPG, Diesel, Dual Fuel Mast options simplex mast – 3000mm to 5000mm lift duplex mast – 3300mm to 4100mm lift triplex mast – 4000mm to 6000mm lift Integral side shift carriage Fork lengths – 920mm to 2120mm Tyre options – pneumatic, solid, non-marking Control valve options Front screens Rain covers Cabs Pre-cleaner for air filter LED lighting Speed meter Load weight meter Special paint Reverse assist grip with horn button Yale Vision Telemetry

Performance

Continuous Stability Enhancement (CSE)

The maintenance free CSE enhances lateral stability without compromising uneven surface travel, through reducing truck lean by limiting the articulation of the steer axle.

Cabin & Equipment

Innovative Cooling System

The cooling system operates at lower temperatures. This offers significant improvement when it comes to cooling air flow, increasing component life and minimising the risk of overheating in heavy-duty applications. Optimised ducting and high volume tunnels allow Yale MX lift trucks to run for longer in a cooler state. Radiators are shockproof mounted for long life. Yale MX transmissions gear profiles optimised to reduce operator noise in conjunction with isolated powertrain, minimising operator fatigue and improving comfort.

Operators prefer Yale MX lift trucks

With a wide range of ergonomic and technologically advanced features, operators prefer Yale MX lift trucks to keep warehouse operations running efficiently.
