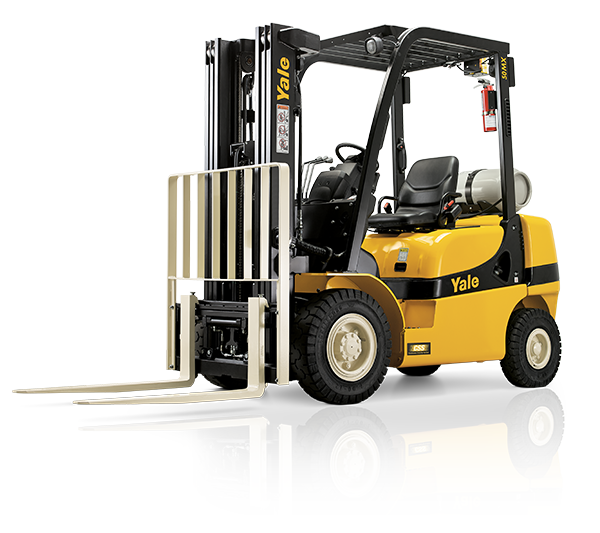

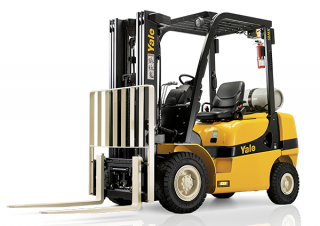

GLP 25MX Yale LPG Forklift Specs & Dimensions (2016 - 2019)

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: 2x/2 – Weight: 4.04t – Turning radius: 2.236m – Lifting hei…

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: 2x/2 – Weight: 4.04t – Turning radius: 2.236m – Lifting height: 3.3m

Yale is the manufacturer of the GLP 25MX LPG forklift. The production years for this model are (2016 - 2019). Find here detailed specs for GLP 25MX LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

LPG Forklifts Yale GLP 25MX

Visit Yale live at

Technical specs - GLP 25MX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
500 mm
Standard tyres
2x/2
Weight
4.04 t
Turning radius
2.236 m
Lifting height
3.3 m
Travel speed with / without load
18.4/18.6 km/h
Hoisting with / without load
0.59/0.62 m/s
Lowering with load
0.58 m/s
max. climbing ability
30.7 %
Model series
GLP
Engine manuf.
PSI
Engine type
2.4L
Engine power
46 kW
Displacement
2.351 l
Revolutions at max torque
2700 rpm
Max. torque
164/2000 Nm
No. of cylinders
4

More technical details, like: transmission type, total width, construction height, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
