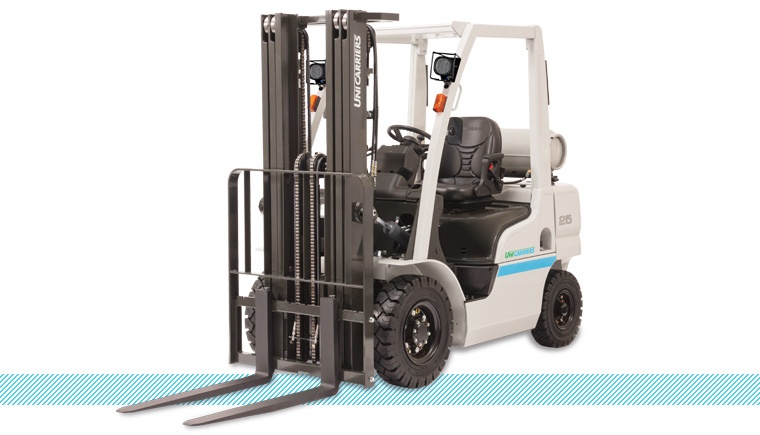

UniCarriers PF60 LPG forklift specs (2019 - 2023)
Nominal load at COG: 2.7t – Standard tyres: Pneumatic, 2x/2 – Centre of gravity: 600mm – Weight: 4.2t – Total width: 1665mm – Cons... Read more
Nominal load at COG: 2.7t – Standard tyres: Pneumatic, 2x/2 – Centre of gravity: 600mm – Weight: 4.2t – Total width: 1665mm – Construction height: 2175mm
UniCarriers is the manufacturer of the PF60 LPG forklift. The production years for this model are (2019 - 2023). Find here detailed specs for PF60 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by UniCarriers.
Technical specs - PF60 UniCarriers
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Nominal load at COG 2.7 t
- Standard tyres Pneumatic, 2x/2
- Centre of gravity 600 mm
- Weight 4.2 t
- Total width 1665 mm
- Construction height 2175 mm
- Turning radius 2.3 m
- Lifting height 3.3 m
- Travel speed with / without load 19.0/19.0 km/h
- Hoisting with / without load 0.53/0.58 m/s
- Lowering with load 0.50/0.50 m/s
- max. climbing ability 28 / 24 %
- Engine manuf. GCT
- Engine type GK25
- Engine power 47 kW
- Displacement 2.5 l
- Revolutions at max torque 1600 rpm
- Max. torque 188 Nm
More technical details, like: transmission type, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
