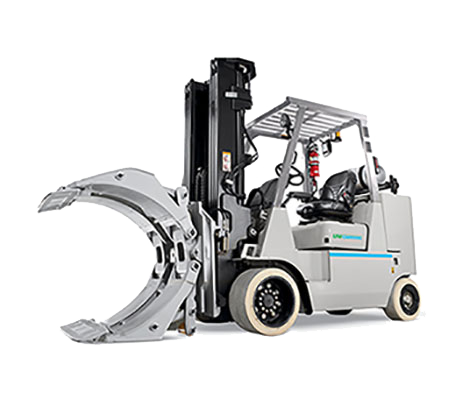

    UniCarriers CF100 Specifications & Technical Data (2021-2021)

    Rate this machine now!

    Nominal load at COG: 4.5t – Standard tyres: Cushion, 2x/2 – Centre of gravity: 600mm – Weight: 6.47t – Total width: 1270mm – Construction height: 2205mm

    Technical specs - CF100 UniCarriers

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Nominal load at COG 4.5 t
    • Standard tyres Cushion, 2x/2
    • Centre of gravity 600 mm
    • Weight 6.47 t
    • Total width 1270 mm
    • Construction height 2205 mm
    • Turning radius 2.34 m
    • Lifting height 2.89 m
    • Travel speed with / without load 18.5/19.5 km/h
    • Hoisting with / without load 0.39/0.42 m/s
    • Lowering with load 0.44/0.41 m/s
    • max. climbing ability 30 %
    • Engine manuf. PSI
    • Engine type 4X
    • Engine power 78 kW
    • Displacement 4.3 l
    • Revolutions at max torque 1000 rpm
    • Max. torque 285 Nm
    • No. of cylinders 6
    • Transmission type ###
    • Dimension lxwxh ###
    • Cylinder bore x stroke ###
    • Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
