FG20N Mitsubishi LPG Forklift Specs & Dimensions (2022 - 2026)

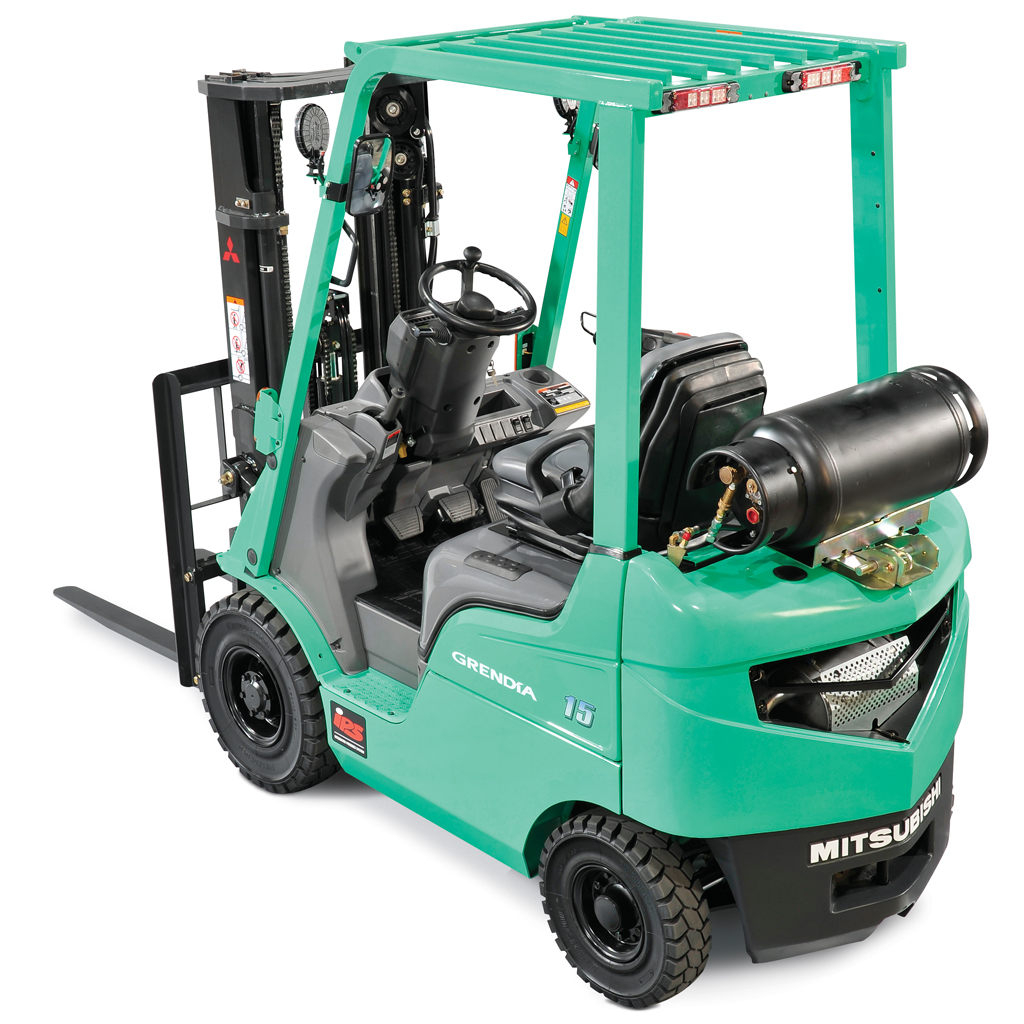

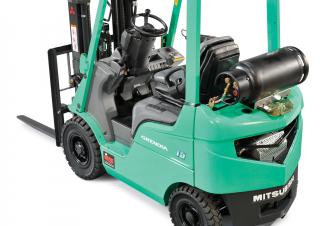

Name: Mitsubishi FG20N LPG Forklifts
Brand: Mitsubishi

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Transmission type: W – Weight: 3.3t – Total width: 1…

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Transmission type: W – Weight: 3.3t – Total width: 1150mm

Mitsubishi is the manufacturer of the FG20N LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for FG20N LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Mitsubishi.

FG20N

Years of manufacture: 2022—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - FG20N Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2 t

Centre of gravity: 500 mm

Standard tyres: L 2x/2

Transmission type: W

Weight: 3.3 t

Total width: 1150 mm

Construction height: 2145 mm

Turning radius: 2.2 m

Lifting height: 3.3 m

Travel speed with / without load: 19/19.5 km/h

Hoisting with / without load: 0.59/0.61 m/s

Lowering with load: 0.5/0.5 m/s

max. climbing ability: 60 %

Model series: Grendia ES

Engine manuf.: GCT

Engine type: GK21E

Engine power: 41 kW

Displacement: 2.065 l

Revolutions at max torque: 2700 rpm

Max. torque: 151/1800 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
