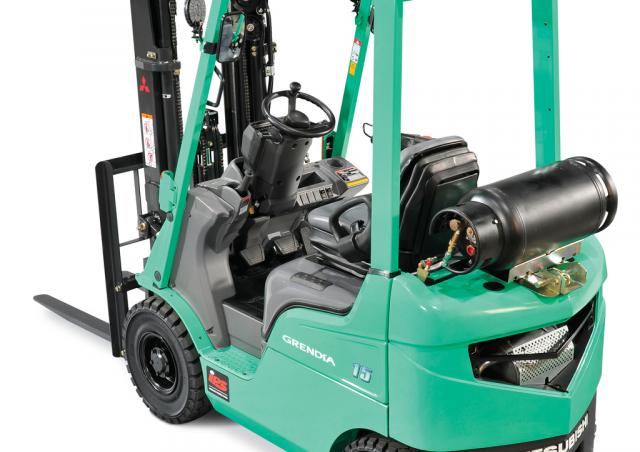

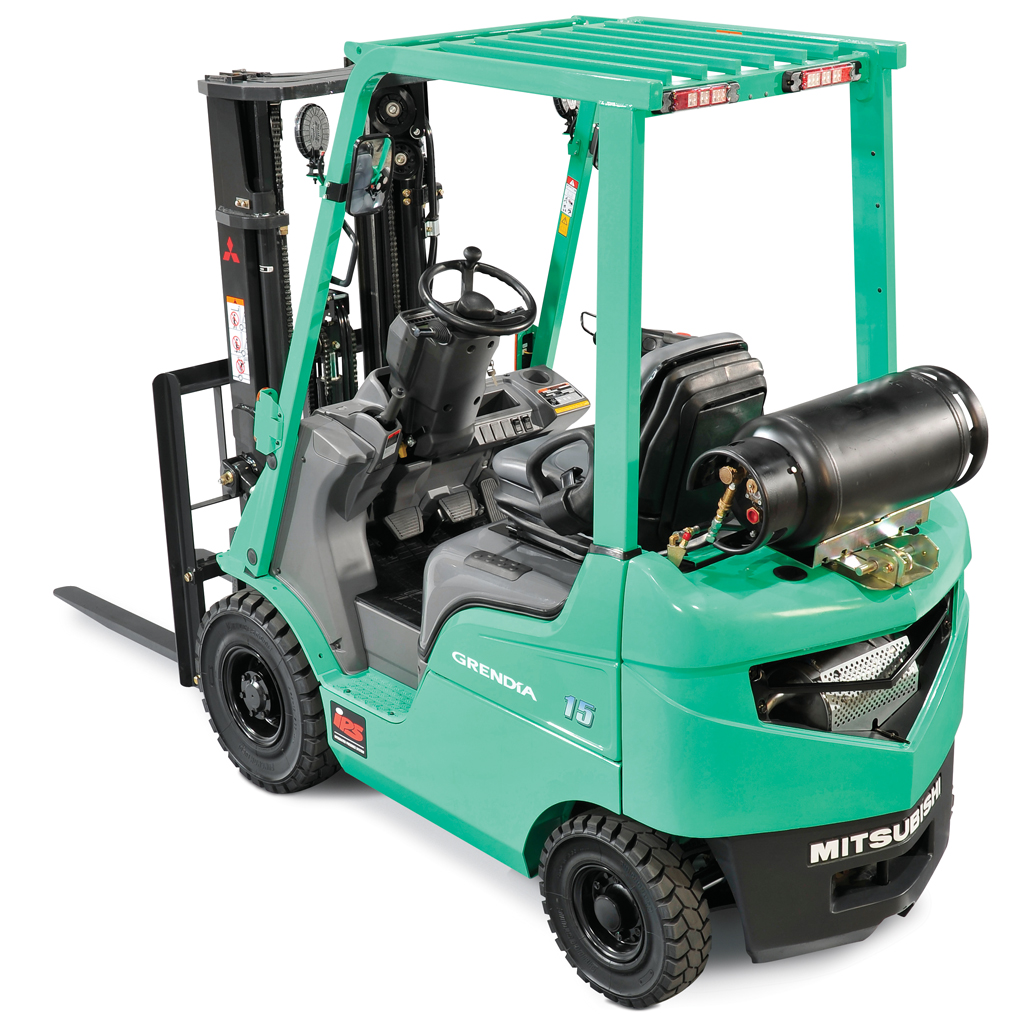

Mitsubishi FG15N
- Nominal load at COG:
- 1.5 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- L 2x/2
- Transmission type:
- W
Mitsubishi FG15N LPG forklift specs & dimensions (2022 - 2025)
Technical specs - FG15N Mitsubishi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 1.5 t
- Centre of gravity
- 500 mm
- Standard tyres
- L 2x/2
- Transmission type
- W
- Weight
- 2.49 t
- Total width
- 1065 mm
- Construction height
- 2140 mm
- Turning radius
- 1.95 m
- Lifting height
- 3.29 m
- Travel speed with / without load
- 19/19.5 km/h
- Hoisting with / without load
- 0.64/0.65 m/s
- Lowering with load
- 0.52/0.5 m/s
- max. climbing ability
- 93 %
- Model series
- Grendia ES
- Engine manuf.
- GCT
- Engine type
- GK21E
- Engine power
- 41 kW
- Displacement
- 2.065 l
- Revolutions at max torque
- 2700 rpm
- Max. torque
- 151/1800 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
