MI 20 G Manitou LPG Forklift Specs & Dimensions (2021 - 2026)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: 7.00-12 12PR / 6.00-9 10PR – Transmission type: W – Weight: 3…

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: 7.00-12 12PR / 6.00-9 10PR – Transmission type: W – Weight: 3.62t – Total width: 1155mm

Manitou is the manufacturer of the MI 20 G LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for MI 20 G LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Manitou.

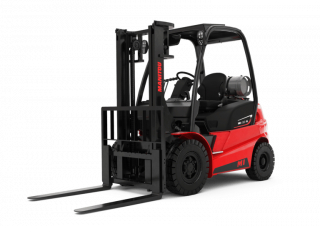

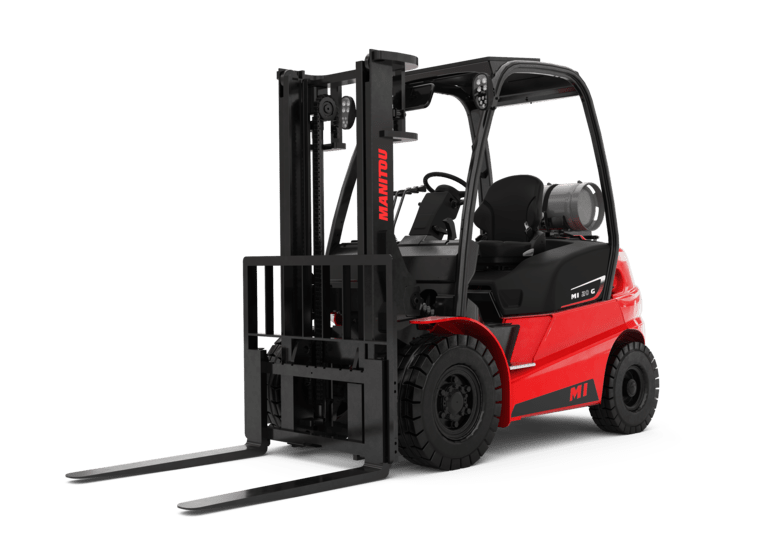

LPG Forklifts Manitou MI 20 G
LPG Forklifts Manitou MI 20 G
LPG Forklifts Manitou MI 20 G
LPG Forklifts Manitou MI 20 G

Visit Manitou live at

Technical specs - MI 20 G Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
7.00-12 12PR / 6.00-9 10PR
Transmission type
W
Weight
3.62 t
Total width
1155 mm
Construction height
2115 mm
Turning radius
2.2 m
Lifting height
3.3 m
Travel speed with / without load
18.8/19.4 km/h
Hoisting with / without load
0.55/0.64 m/s
Lowering with load
0.5 m/s
max. climbing ability
20 %
Model series
MI
Engine manuf.
GCT
Engine type
GK25
Engine power
43.4 kW
Displacement
2.488 l
Revolutions at max torque
2700 rpm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
