H25/600T Linde LPG Forklift Specs & Dimensions (2019 - 2026)

Nominal load at COG: 2.5t – Centre of gravity: 600mm – Standard tyres: SE 2x/2 – Transmission type: HY – Weight: 4.453t – Total wi…

Nominal load at COG: 2.5t – Centre of gravity: 600mm – Standard tyres: SE 2x/2 – Transmission type: HY – Weight: 4.453t – Total width: 1256mm

Linde is the manufacturer of the H25/600T LPG forklift. The production years for this model are (2019 - 2026). Find here detailed specs for H25/600T LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Linde.

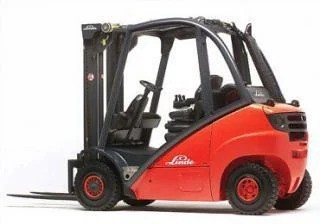

LPG Forklifts Linde H25/600T

Technical specs - H25/600T Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
600 mm
Standard tyres
SE 2x/2
Transmission type
HY
Weight
4.453 t
Total width
1256 mm
Construction height
2322 mm
Turning radius
2.415 m
Lifting height
3.295 m
Travel speed with / without load
22 km/h
Hoisting with / without load
0.53/0.56 m/s
Lowering with load
0.56 m/s
max. climbing ability
33 %
Engine manuf.
Deutz
Engine type
G2.2 L3
Engine power
40 kW
Displacement
2.194 l
Revolutions at max torque
2600 rpm
No. of cylinders
3
Emission level
V

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
