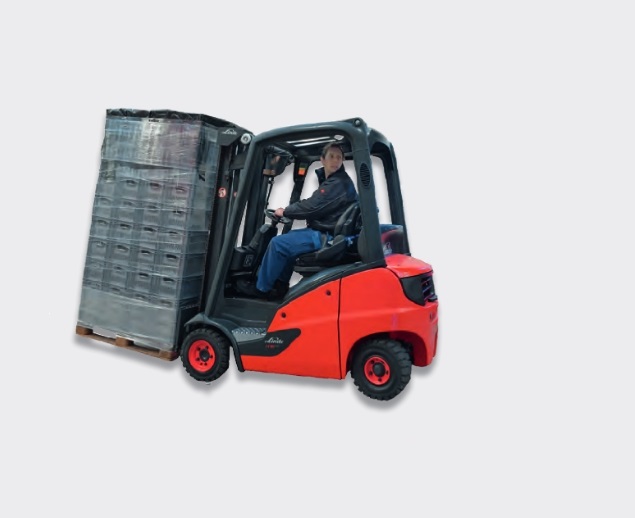

H20T CT-600 Linde LPG Forklift Specs & Dimensions (2022 - 2026)

Name: Linde H20T CT-600 LPG Forklifts
Brand: Linde

Nominal load at COG: 2t – Centre of gravity: 610mm – Standard tyres: SE 2x/2 – Transmission type: HY – Weight: 3.2t – Total width:…

Nominal load at COG: 2t – Centre of gravity: 610mm – Standard tyres: SE 2x/2 – Transmission type: HY – Weight: 3.2t – Total width: 1092mm

Linde is the manufacturer of the H20T CT-600 LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for H20T CT-600 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Linde.

H20T CT-600

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H20T CT-600 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2 t

Centre of gravity: 610 mm

Standard tyres: SE 2x/2

Transmission type: HY

Weight: 3.2 t

Total width: 1092 mm

Construction height: 2324 mm

Turning radius: 2.12 m

Lifting height: 3.52 m

Travel speed with / without load: 16/16 km/h

Hoisting with / without load: 0.6/0.63 m/s

Lowering with load: 0.57 m/s

max. climbing ability: 34 %

Engine manuf.: VW

Engine type: BEF

Engine power: 28 kW

Displacement: 1.98 l

Revolutions at max torque: 2100 rpm

No. of cylinders: 4

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

H20T CT-600 Linde Specification for Global (EN)
