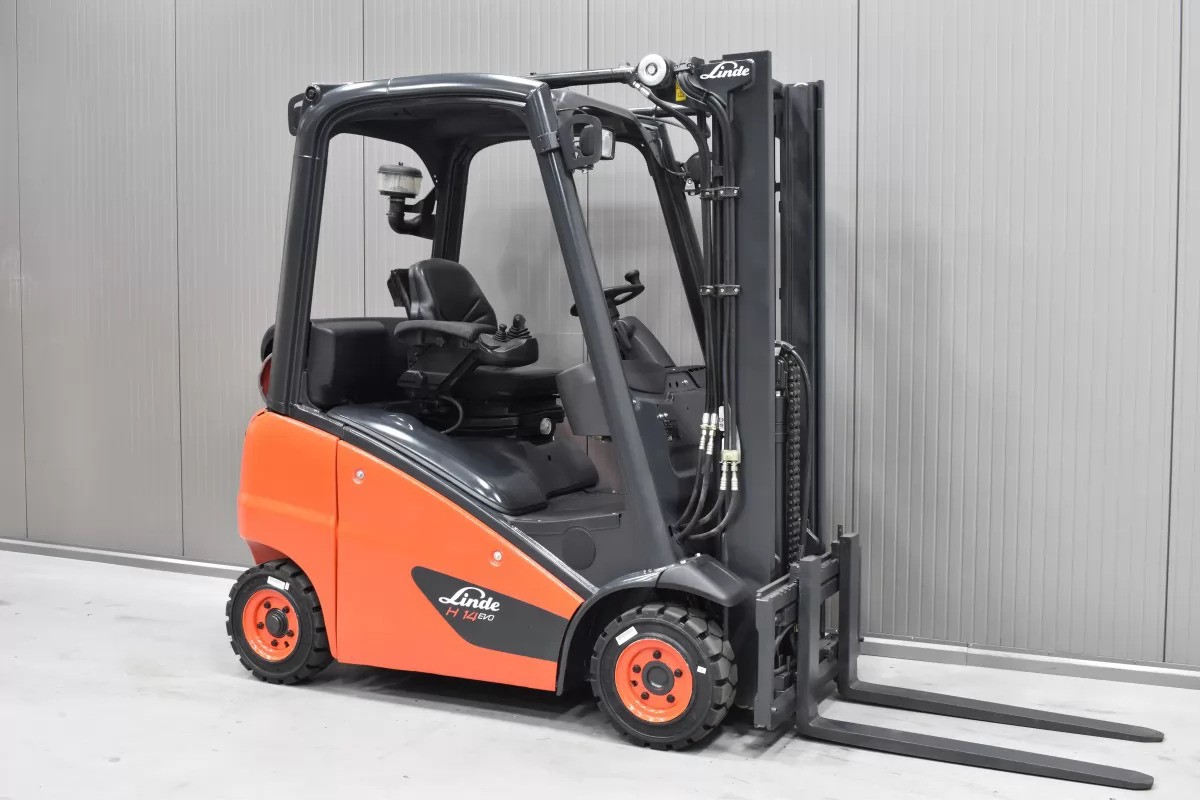

Linde H14T EVO
- Nominal load at COG:
- 1.4 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- 2x/2
- Transmission type:
- HY
H14T EVO Linde LPG Forklift Specs & Dimensions (2019 - 2023)
Technical specs - H14T EVO Linde
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 1.4 t
- Centre of gravity
- 500 mm
- Standard tyres
- 2x/2
- Transmission type
- HY
- Weight
- 2.57 t
- Total width
- 1086 mm
- Construction height
- 2123 mm
- Turning radius
- 2.005 m
- Lifting height
- 3.15 m
- Travel speed with / without load
- 20 km/h
- Hoisting with / without load
- 0.6/0.63 m/s
- Lowering with load
- 0.57 m/s
- max. climbing ability
- 38 %
- Engine manuf.
- VW
- Engine type
- BEF
- Engine power
- 28 kW
- Displacement
- 1.98 l
- Revolutions at max torque
- 2100 rpm
- No. of cylinders
- 4
More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
