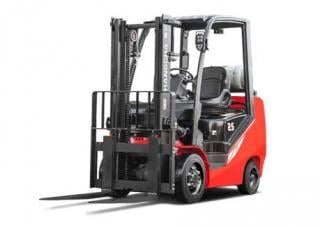

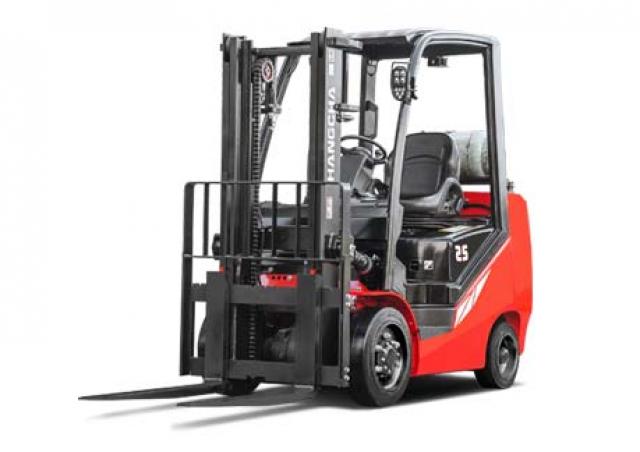

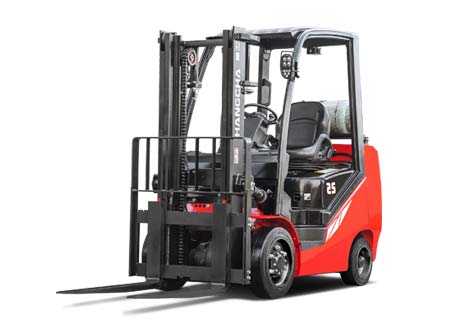

Hangcha CPYD15-XH23F
- Nominal load at COG:
- 1.5 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- 6,5-10/5.00-8
- Weight:
- 2.65 t
Hangcha CPYD15-XH23F LPG Forklift Specs & Dimensions (2020 - 2025)
Technical specs - CPYD15-XH23F Hangcha
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 1.5 t
- Centre of gravity
- 500 mm
- Standard tyres
- 6,5-10/5.00-8
- Weight
- 2.65 t
- Total width
- 1080 mm
- Construction height
- 2125 mm
- Turning radius
- 1.99 m
- Lifting height
- 3 m
- Travel speed with / without load
- 20 km/h
- Hoisting with / without load
- 0.53 m/s
- Lowering with load
- 0.5 m/s
- max. climbing ability
- 37 %
- Model series
- XF
- Engine manuf.
- GCT
- Engine type
- GK21LPG
- Engine power
- 43 kW
- Displacement
- 2.065 l
- Revolutions at max torque
- 2700 rpm
- Max. torque
- 161/1800 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 89x83 mm
- Emission level
- V
More technical details, like: transmission type, dimension lxwxh are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
