CPQ(D)25T3 EP LPG Forklift Specs & Dimensions (2024 - 2026)

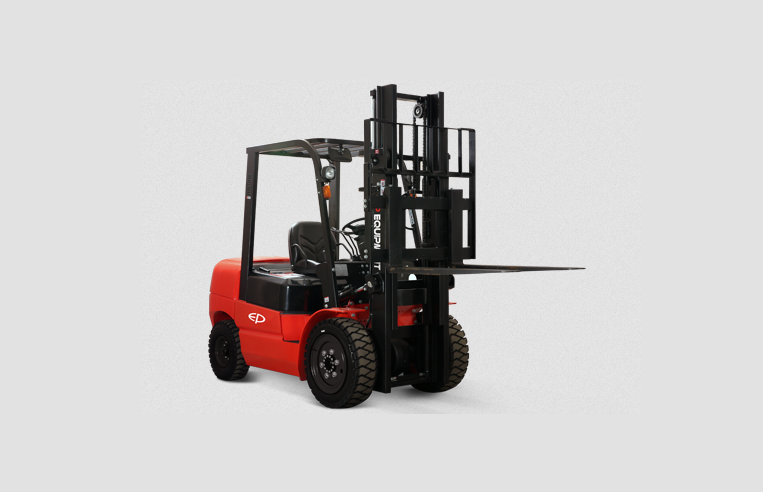

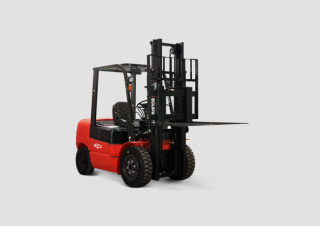

Name: EP CPQ(D)25T3 LPG Forklifts
Brand: EP

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: F: 700-12-12PR / R: 600-9-10PR – Weight: 3.77t – Total widt…

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: F: 700-12-12PR / R: 600-9-10PR – Weight: 3.77t – Total width: 1150mm – Construction height: 2160mm

EP is the manufacturer of the CPQ(D)25T3 LPG forklift. The production years for this model are (2024 - 2026). Find here detailed specs for CPQ(D)25T3 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by EP.

CPQ(D)25T3

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CPQ(D)25T3 EP

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.5 t

Centre of gravity: 500 mm

Standard tyres: F: 700-12-12PR / R: 600-9-10PR

Weight: 3.77 t

Total width: 1150 mm

Construction height: 2160 mm

Turning radius: 2.24 m

Lifting height: 3 m

Travel speed with / without load: 20 km/h

Hoisting with / without load: 0.45 m/s

Lowering with load: 0.4 m/s

max. climbing ability: 20 %

Model series: CPC(D)

Engine manuf.: GCT

Engine type: GK25

Engine power: 37.4 kW

Displacement: 2.49 l

Revolutions at max torque: 1600 rpm

Max. torque: 176.5 Nm

No. of cylinders: 4

Cylinder bore x stroke: 89x100 mm

More technical details, like: transmission type, dimension lxwxh, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
