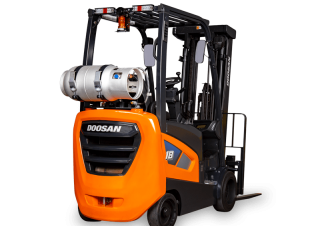

Doosan GC18S-9 LPG forklift specs (2022 - 2024)

Name: Doosan GC18S-9 LPG Forklifts
Brand: Doosan

Nominal load at COG: 1.56t – Centre of gravity: 610mm – Standard tyres: 18 x 6 x 12.12/14 x 5 x 10 – Weight: 2.93t – Total width: …

Nominal load at COG: 1.56t – Centre of gravity: 610mm – Standard tyres: 18 x 6 x 12.12/14 x 5 x 10 – Weight: 2.93t – Total width: 940mm – Construction height: 2060mm

Doosan is the manufacturer of the GC18S-9 LPG forklift. The production years for this model are (2022 - 2024). Find here detailed specs for GC18S-9 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Doosan.

GC18S-9

Years of manufacture: 2022—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - GC18S-9 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 1.56 t

Centre of gravity: 610 mm

Standard tyres: 18 x 6 x 12.12/14 x 5 x 10

Weight: 2.93 t

Total width: 940 mm

Construction height: 2060 mm

Turning radius: 1.867 m

Lifting height: 3 m

Travel speed with / without load: 17.8/17.8 km/h

Hoisting with / without load: 0.63/0.66 m/s

Lowering with load: 0.51 m/s

Model series: GC 9

Engine manuf.: PSI

Engine type: 4G63

Engine power: 37.7 kW

Displacement: 2 l

Revolutions at max torque: 1800 rpm

Max. torque: 148.7 Nm

No. of cylinders: 4

More technical details, like: transmission type, max. climbing ability, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

GC18S-9 Doosan Specification for Global (EN)
