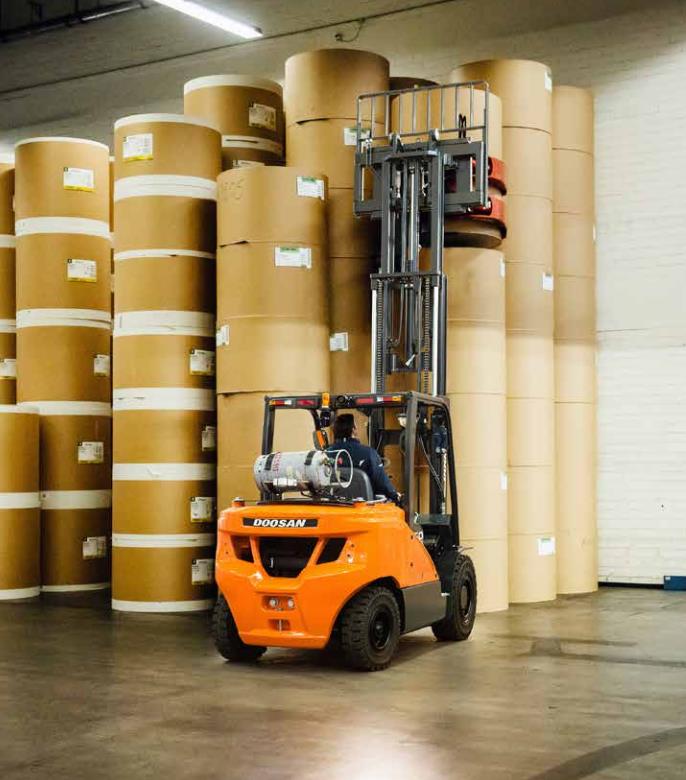

G55C-7 Doosan LPG Forklift Specs & Dimensions (2018 - 2021)
Technical specs - G55C-7 Doosan
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 5 t
- Centre of gravity
- 600 mm
- Total width
- 1455 mm
- Construction height
- 2230 mm
- Turning radius
- 2.975 m
- Lifting height
- 3.05 m
- Travel speed with / without load
- 19.5 km/h
- Hoisting with / without load
- 0.47 m/s
- Model series
- G 7
- Engine manuf.
- Kubota
- Engine type
- WG3800
- Engine power
- 69 kW
- Displacement
- 3.769 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 290 Nm
- No. of cylinders
- 4
More technical details, like: standard tyres, transmission type, weight, lowering with load, max. climbing ability, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
