    Lectura specs Forklifts LPG Forklifts LPG Forklifts Crown Crown CG60S-7 specifications

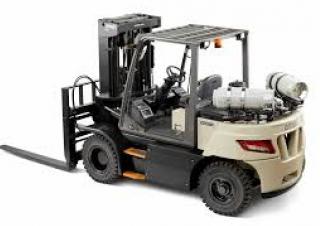

    Technical specs - CG60S-7 Crown

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 6 t
    Standard tyres Front: 8.25x15-14 / Rear: 8.25x15-14
    Centre of gravity 600 mm
    Weight 8.745 t
    Total width 2108 mm
    Construction height 2500 mm
    Turning radius 3.38 m
    Lifting height 3 m
    Travel speed with / without load 22.6 / 23.7 km/h
    Hoisting with / without load 0.38 / 0.41 m/s
    Lowering with load 0.49 m/s
    max. climbing ability 30 %
    Engine manuf. N/A
    Engine type PSI 4.3L
    Engine power 70 kW
    Engine power 93.8 HP
    Displacement 4.29 l
    Revolutions at max torque 1800 rpm
    Max. torque 283.9 Nm
    No. of cylinders 6
    Emission level Tier III
    Transmission type ###
    Dimension lxwxh ###
    Cylinder bore x stroke ###
    Weight ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
