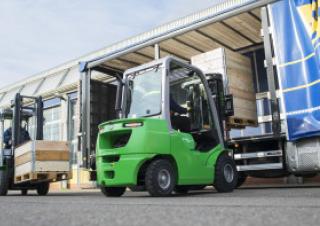

Cesab M335GV
- Nominal load at COG:
- 3.5 t
- Centre of gravity:
- 500 mm
- Turning radius:
- 2.49 m
- Lifting height:
- 2.97 m
M335GV Cesab LPG Forklift Specs & Dimensions (2024 - 2026)
Technical specs - M335GV Cesab
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 3.5 t
- Centre of gravity
- 500 mm
- Turning radius
- 2.49 m
- Lifting height
- 2.97 m
- Travel speed with / without load
- 19/19.5 km/h
- Hoisting with / without load
- 0.43/0.45 m/s
- Engine manuf.
- N/A
- Engine type
- 4Y-ECS (V)
- Engine power
- 42 kW
- Displacement
- 2.57 l
- Revolutions at max torque
- 2570 rpm
- Max. torque
- 165 Nm
- No. of cylinders
- 4
- Emission level
- Stage V
More technical details, like: standard tyres, transmission type, weight, total width, construction height, lowering with load, max. climbing ability, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
