M325H-GV Cesab LPG Forklift Specs & Dimensions (2022 - 2026)

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Turning radius: 2.28m – Lifting height: 2.97m – Travel speed with / without…

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Turning radius: 2.28m – Lifting height: 2.97m – Travel speed with / without load: 19/19km/h – Hoisting with / without load: 0.6/0.64m/s

Cesab is the manufacturer of the M325H-GV LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for M325H-GV LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Cesab.

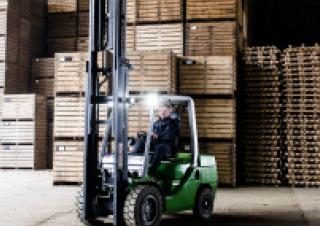

LPG Forklifts Cesab M325H-GV
LPG Forklifts Cesab M325H-GV
LPG Forklifts Cesab M325H-GV
LPG Forklifts Cesab M325H-GV

Technical specs - M325H-GV Cesab

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
500 mm
Turning radius
2.28 m
Lifting height
2.97 m
Travel speed with / without load
19/19 km/h
Hoisting with / without load
0.6/0.64 m/s
Model series
E 300
Engine manuf.
N/A
Engine type
4Y-ECS (V)
Engine power
38 kW
Displacement
2.57 l
Revolutions at max torque
2100 rpm
Max. torque
160 Nm
No. of cylinders
4
Emission level
Stage V

More technical details, like: standard tyres, transmission type, weight, total width, construction height, lowering with load, max. climbing ability, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
