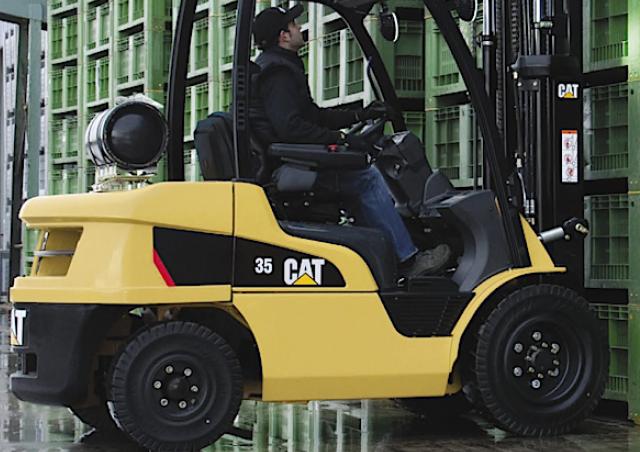

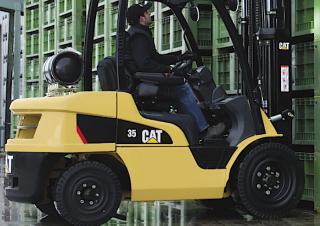

    Technical specs - GP35N Caterpillar

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 3.5 t
    Standard tyres 2x/2SE
    Centre of gravity 500 mm
    Transmission type W
    Weight 4.74 t
    Turning radius 2.44 m
    Lifting height 3.3 m
    Travel speed with / without load 19/19.5 km/h
    Hoisting with / without load 0.43/0.44 m/s
    Lowering with load 0.42/0.4 m/s
    max. climbing ability 19 %
    Engine manuf. Mitsubishi
    Engine type 4 G 64
    Engine power 37 kW
    Total width ###
    Construction height ###
    Engine power ###
    Dimension lxwxh ###
    Displacement ###
    Revolutions at max torque ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
