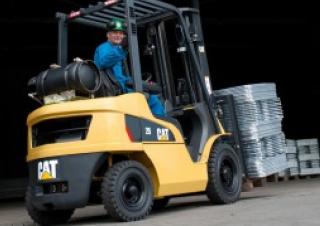

GP20CN Caterpillar LPG Forklift Specs & Dimensions (2019 - 2025)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: Front:  6.50-10-10 / Rear:  5.00-8-8 – Weight: 2.98t – Total …

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: Front:  6.50-10-10 / Rear:  5.00-8-8 – Weight: 2.98t – Total width: 1065mm – Construction height: 1990mm

Caterpillar is the manufacturer of the GP20CN LPG forklift. The production years for this model are (2019 - 2025). Find here detailed specs for GP20CN LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Caterpillar.

LPG Forklifts Caterpillar GP20CN

Technical specs - GP20CN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
Front:  6.50-10-10 / Rear:  5.00-8-8
Weight
2.98 t
Total width
1065 mm
Construction height
1990 mm
Turning radius
2.02 m
Lifting height
3 m
Travel speed with / without load
19/19.5 km/h
Hoisting with / without load
0.64/0.65 m/s
Lowering with load
0.52 m/s
max. climbing ability
66 %
Model series
GP
Engine manuf.
N/A
Engine type
GK21E
Engine power
41 kW
Displacement
2.065 l
Revolutions at max torque
2700 rpm
Max. torque
151/1800 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
