G25NXP Bobcat LPG Forklift Specs & Dimensions (2024 - 2026)

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: 28X9-15-14PR/6.50-10-10PR – Weight: 3.9t – Total width: 129…

Nominal load at COG: 2.5t – Centre of gravity: 500mm – Standard tyres: 28X9-15-14PR/6.50-10-10PR – Weight: 3.9t – Total width: 1290mm – Turning radius: 2.3m

Bobcat is the manufacturer of the G25NXP LPG forklift. The production years for this model are (2024 - 2026). Find here detailed specs for G25NXP LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Bobcat.

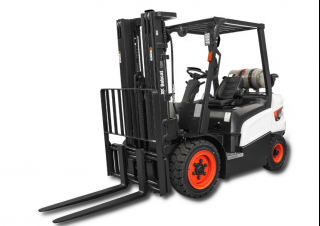

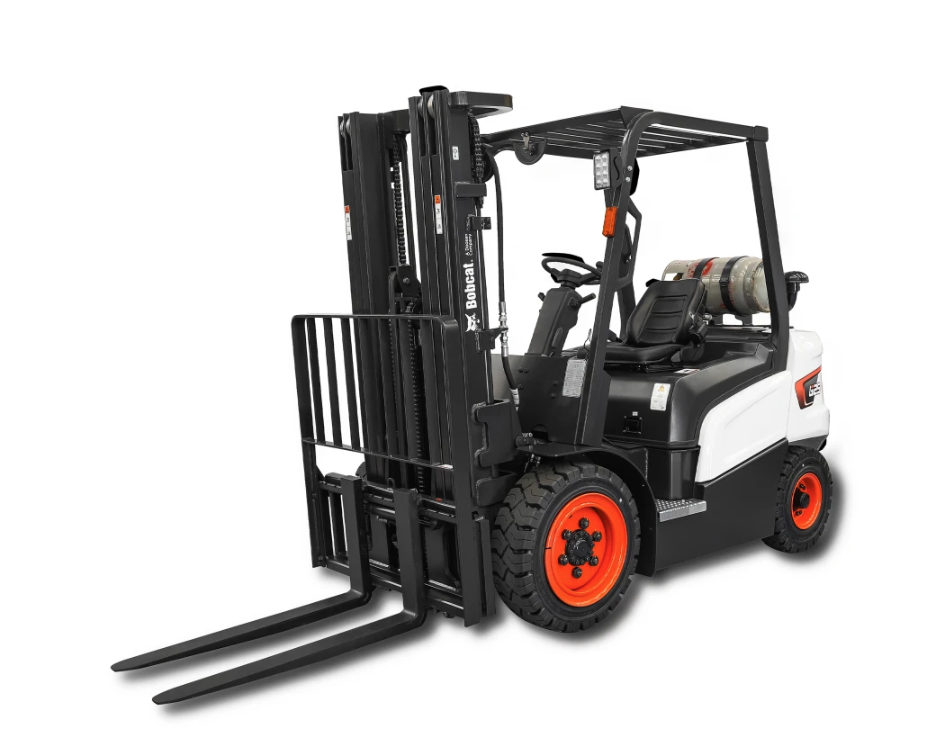

LPG Forklifts Bobcat G25NXP

Visit Bobcat live at

Technical specs - G25NXP Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
500 mm
Standard tyres
28X9-15-14PR/6.50-10-10PR
Weight
3.9 t
Total width
1290 mm
Turning radius
2.3 m
Lifting height
3 m
Travel speed with / without load
20 km/h
Hoisting with / without load
5.1/5.3  m/s
Lowering with load
4.2/5.5 m/s
max. climbing ability
32 %
Model series
NX Plus
Engine manuf.
Hyundai
Engine type
G424IE
Engine power
45.4 kW
Displacement
2.3 l
No. of cylinders
4

More technical details, like: transmission type, construction height, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
