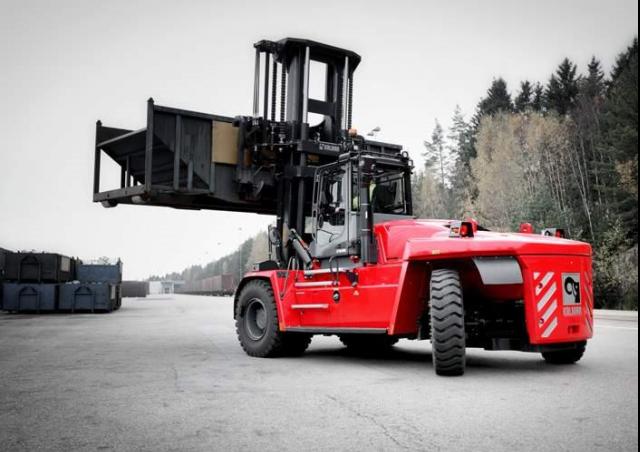

DCG200-12LB Kalmar diesel forklift specs & dimensions (2015 - 2020)

The Kalmar DCG200-12LB is a diesel forklift manufactured by Kalmar from 2015 to 2020. It has a weight of 29.8 tons and a nominal l…

The Kalmar DCG200-12LB is a diesel forklift manufactured by Kalmar from 2015 to 2020. It has a weight of 29.8 tons and a nominal load at the center of gravity of 20 tons. The forklift has a lifting height of 5 meters and a center of gravity at 1200 mm. It has a maximum climbing ability of 69 percent and a total width of 3050 mm. The turning radius of the forklift is 5.6 meters and it has a construction height of 3270 mm.

Technical specs - DCG200-12LB Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
20 t
Centre of gravity
1200 mm
Standard tyres
4x2
Transmission type
W
Weight
29.8 t
Total width
3050 mm
Construction height
3270 mm
Turning radius
5.6 m
Lifting height
5 m
Travel speed with / without load
26/27 km/h
Hoisting with / without load
0.32/0.33 m/s
Lowering with load
0.38/0.38 m/s
max. climbing ability
69 %
Model series
DCG
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
168 kW
Displacement
6.702 l
Revolutions at max torque
2200 rpm
Max. torque
949/1500 Nm
No. of cylinders
6
Emission level
Tier 4 f

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Kalmar DCG200-12LB overview

Performance

Drive modes

Choose between three different drive modes, each optimised to meet your operational requirements. The forklift can be adapted to every task at hand, shifting many times during the day. The operator easily shifts between modes by using the cabin display screen. Power: Brings out maximum performance of your machine, allowing you to increase the number of tonnes moved per hour. Normal: Balances power and economy to optimise profitability. Economy: If total cost of operations outweighs the need for performance, Economy mode reduces fuel consumption by up to 15 per cent.
