DCG120-12 Kalmar diesel forklift specs & dimensions (2016 - 2021)

Name: Kalmar DCG120-12 Diesel Forklifts
Brand: Kalmar

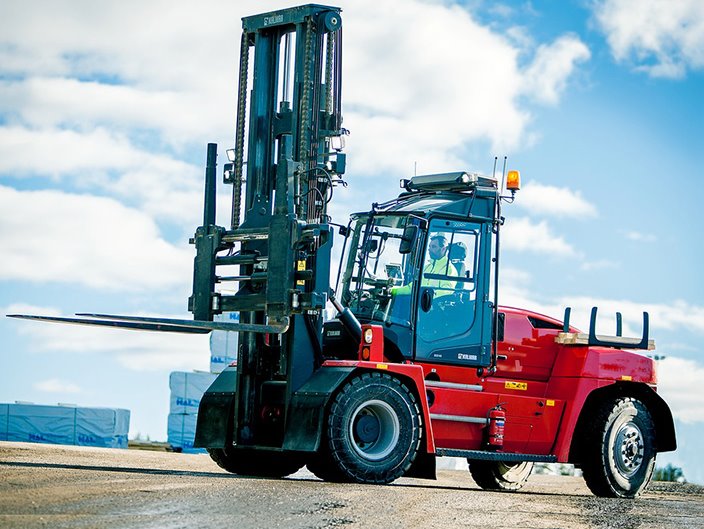

The Kalmar DCG120-12 is a diesel forklift manufactured by Kalmar since 2016. It has a weight of 19.7 tons and a nominal load capac…

The Kalmar DCG120-12 is a diesel forklift manufactured by Kalmar since 2016. It has a weight of 19.7 tons and a nominal load capacity of 12 tons at the center of gravity. The forklift can lift loads up to a height of 5 meters and has a center of gravity at 1200 mm. It has a maximum climbing ability of 83 percent and a total width of 2540 mm. The turning radius of the forklift is 4.785 meters, and its construction height is 2920 mm.

DCG120-12

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - DCG120-12 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 12 t

Centre of gravity: 1200 mm

Standard tyres: 4x2

Transmission type: W

Weight: 19.7 t

Total width: 2540 mm

Construction height: 2920 mm

Turning radius: 4.785 m

Lifting height: 5 m

Travel speed with / without load: 28/29 km/h

Hoisting with / without load: 0.45/0.5 m/s

Lowering with load: 0.4/0.4 m/s

max. climbing ability: 83 %

Model series: DCG

Engine manuf.: Volvo

Engine type: TAD572VE

Engine power: 160 kW

Displacement: 5.1 l

Revolutions at max torque: 2300 rpm

Max. torque: 910/1200 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
