Kalmar DCE 70-40 E5 diesel forklift specs (2012 - 2018)

Rate this machine now!

The Kalmar DCE 70-40 E5 is a diesel forklift manufactured by Kalmar from 2012 to 2018. It has a weight of 30.9 tons and a nominal ... Read more

The Kalmar DCE 70-40 E5 is a diesel forklift manufactured by Kalmar from 2012 to 2018. It has a weight of 30.9 tons and a nominal load at the center of gravity of 7 tons. The forklift can lift loads up to a height of 15.18 meters, with a center of gravity at 1220 mm. It has a maximum climbing ability of 74 percent and a lowering speed of 0.4 meters per second with a load. The total width of the forklift is 3500 mm, and it can travel at a speed of 29 km/h with or without a load. The turning radius is 5.4 meters, and the construction height is 3840 mm.

Technical specs - DCE 70-40 E5 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal load at COG 7 t
  • Centre of gravity 1220 mm
  • Standard tyres 4x/2
  • Transmission type W
  • Weight 30.9 t
  • Total width 3500 mm
  • Construction height 3840 mm

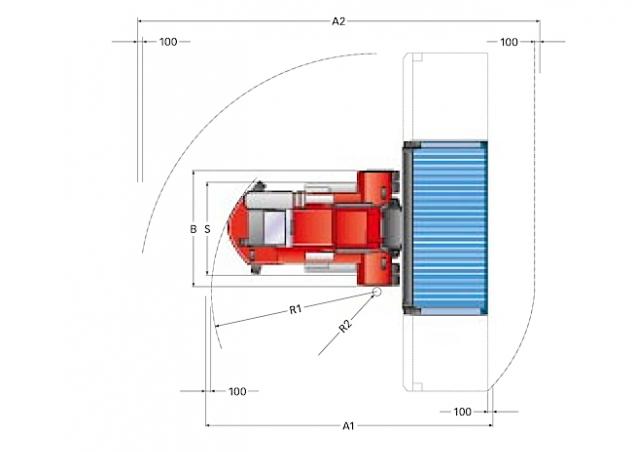

  • Turning radius 5.4 m
  • Lifting height 15.18 m
  • Travel speed with / without load 29 km/h
  • Hoisting with / without load 0.45/0.5 m/s
  • Lowering with load 0.4 m/s
  • max. climbing ability 74 %
  • Model series DCE
  • Engine manuf. Volvo
  • Engine type TAD720VE
  • Engine power 174 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
