SM120 Wacker Neuson SM120 Specifications & Technical Data (2023—2026)

Weight: 1.497t – Rated operating capacity: 795kg – Track width: 280mm – Transport length: 3.2m – Transport width: 1.041m – Transport height: 1.478m

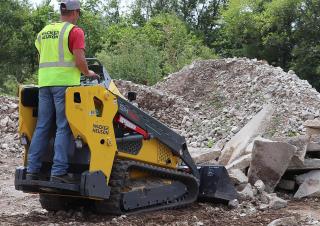

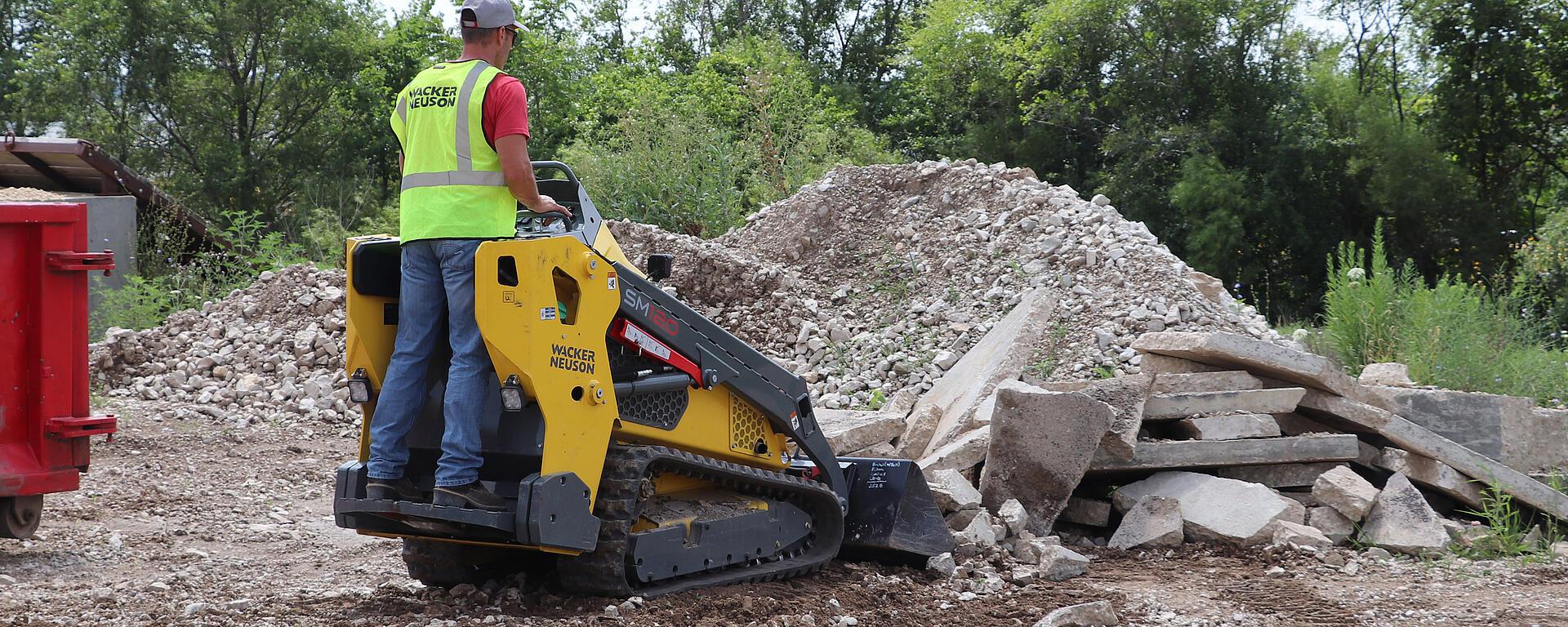

Skid Steer Loaders Wacker Neuson SM120

Visit Wacker Neuson live at

Technical specs - SM120 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.497 t
Rated operating capacity
795 kg
Track width
280 mm
Transport length
3.2 m
Transport width
1.041 m
Transport height
1.478 m
Travel speed
8.1 km/h
Max. discharge height
1.595 m
Lifting force
15.1 kN
Model series
SM
Engine manuf.
Yanmar
Engine type
3TNV80 FT
Engine power
18.5 kW
Revolutions at max torque
2600 rpm
No. of cylinders
3

More technical details, like: standard tyres, bucket width, bucket capacity, driver protection, steering mode, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Wacker Neuson SM120 FAQ

When did production of the Wacker Neuson SM120 start?

The Wacker Neuson SM120 was first produced in 2023.

How much does the Wacker Neuson SM120 weigh?

The Wacker Neuson SM120 weighs 1.5 tons.

What are the transport dimensions of the Wacker Neuson SM120 skid steer loader?

The Wacker Neuson SM120 has a transport length of 3.2 meters, a transport width of 1.04 meters, and a transport height of 1.48 meters.

What is the travel speed of the Wacker Neuson SM120 skid steer loader?

The Wacker Neuson SM120 has a travel speed of 8.1 km/h.

What is the track width of the Wacker Neuson SM120 skid steer loader?

The Wacker Neuson SM120 skid steer loader has a track width of 280 mm.

What are the power ratings of the Wacker Neuson SM120 skid steer loader?

The available data does not provide power ratings for the Wacker Neuson SM120 skid steer loader.

What is the material handling capacity of the Wacker Neuson SM120 skid steer loader?

The Wacker Neuson SM120 skid steer loader has a rated operating capacity of 795 kilograms.

How much is a Wacker Neuson SM120 Skid steer loader (2023u20132025) worth?

The residual value of the Wacker Neuson SM120 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
