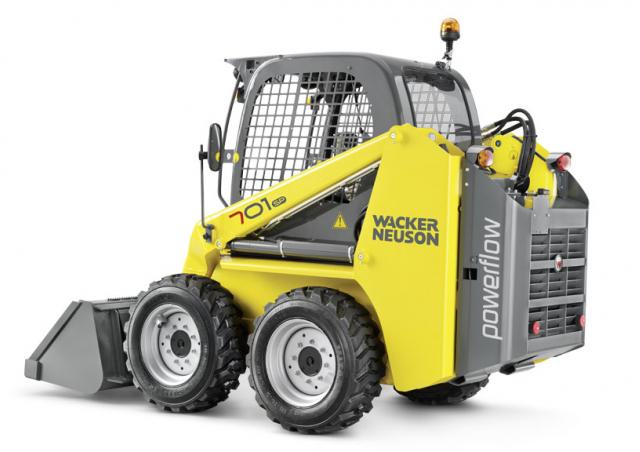

701 s Wacker Neuson 701 s Specifications & Technical Data (2008—2018)

The Wacker Neuson 701 s is a skid steer loader manufactured by Wacker Neuson from 2008 to 2018. It has a weight of 2.45 tons and a…

The Wacker Neuson 701 s is a skid steer loader manufactured by Wacker Neuson from 2008 to 2018. It has a weight of 2.45 tons and a transport length of 3.06 meters. The bucket capacity is 0.36 cubic meters, with a bucket width of 1.52 meters. The transport width is 1.475 meters, and the transport height is 1.94 meters. The rated operating capacity is 680 kilograms.

Skid Steer Loaders Wacker Neuson 701 s

Visit Wacker Neuson live at

Technical specs - 701 s Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.45 t
Rated operating capacity
680 kg
Standard tyres
10x16.5
Bucket width
1.52 m
Bucket capacity
0.36 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.06 m
Transport width
1.475 m
Transport height
1.94 m
Engine manuf.
Yanmar
Engine type
4TNV84 Turbo
Engine power
39 kW
Displacement
2.189 l
Revolutions at max torque
2800 rpm

More technical details, like: track width, travel speed, max. discharge height, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access...

More technical details, like: track width, travel speed, max. discharge height, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Wacker Neuson 701 s FAQ

When was the Wacker Neuson 701 s manufactured?

The Wacker Neuson 701 s was manufactured from 2008 to 2018.

How much does the Wacker Neuson 701 s weigh?

The Wacker Neuson 701 s weighs 2.45 tons.

What are the transport dimensions of the Wacker Neuson 701 s skid steer loader?

The Wacker Neuson 701 s has a transport length of 3.06 meters, a transport width of 1.48 meters, and a transport height of 1.94 meters.

What are the undercarriage specifications of the Wacker Neuson 701 s?

The Wacker Neuson 701 s is equipped with standard tyres sized 10x16.5.

What is the steering mode of the Wacker Neuson 701 s skid steer loader?

The Wacker Neuson 701 s skid steer loader uses tank steering mode.

What is the material handling capacity of the Wacker Neuson 701 s skid steer loader?

The Wacker Neuson 701 s skid steer loader has a rated operating capacity of 680 kilograms.

What are the specifications of the primary work tool bucket on the Wacker Neuson 701 s skid steer loader?

The primary work tool bucket of the Wacker Neuson 701 s has a capacity of 0.36 cubic meters and a width of 1.52 meters.

What operator safety and support features does the Wacker Neuson 701 s have?

The Wacker Neuson 701 s is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.
