MC135C Volvo MC135C Specifications & Technical Data (2012—2017)
Visit Volvo live at
.jpg){kind=logo}

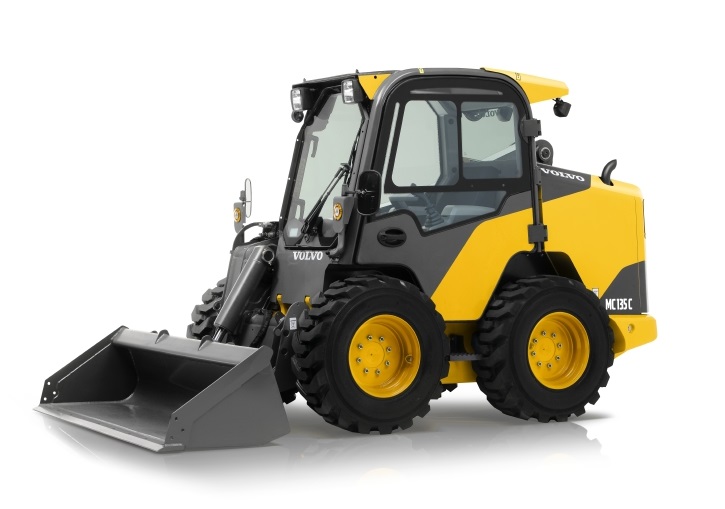

Technical specs - MC135C Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.067 t
- Rated operating capacity
- 1179 kg
- Standard tyres
- 12x16.5-10PR
- Bucket width
- 1.82 m
- Bucket capacity
- 0.43 m³
- Driver protection
- KbR
- Steering mode
- AL
- Transport length
- 3.78 m
- Transport width
- 1.82 m
- Transport height
- 2.09 m
- Travel speed
- 10.9 km/h
- Engine manuf.
- Volvo
- Engine type
- TC-68
- Engine power
- 68.6 kW
- Displacement
- 4.399 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 408/1200 Nm
- No. of cylinders
- 4
More technical details, like: track width, max. discharge height, lifting force, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
Download datasheets (PDF)
