SSL 705 TCM SSL 705 Specifications & Technical Data (2024—2026)

Rated operating capacity: 430kg – Standard tyres: 27x8.50-25-6PR – Bucket width: 1.23m – Bucket capacity: 0.22m³ – Transport length: 2.83m – Transport width: 1.18m

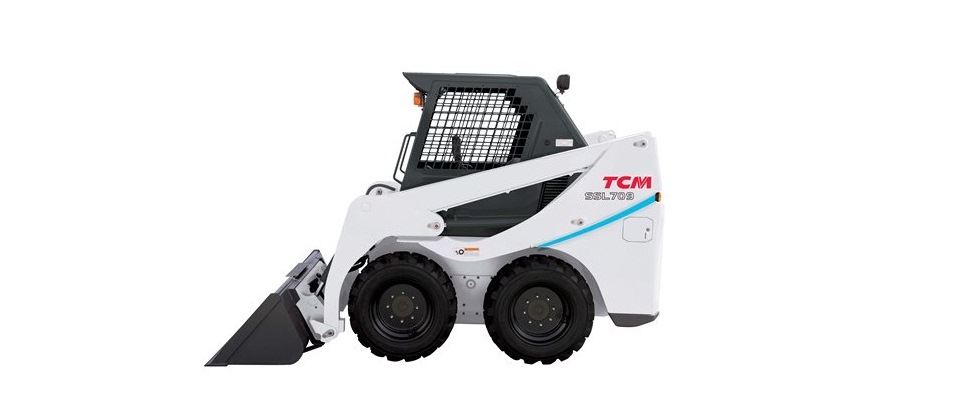

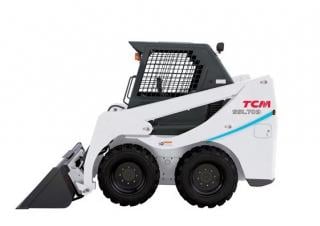

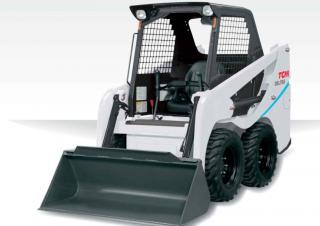

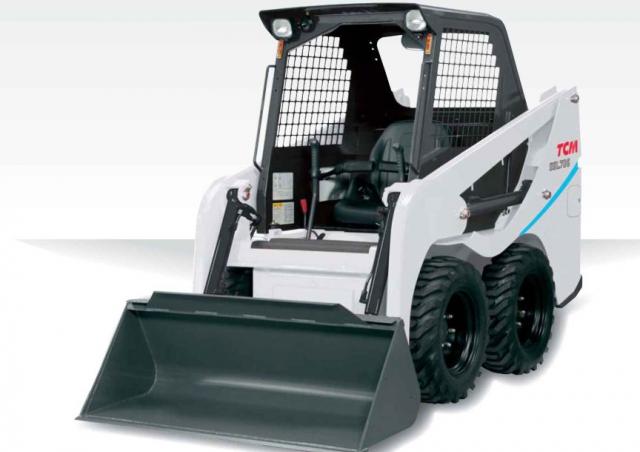

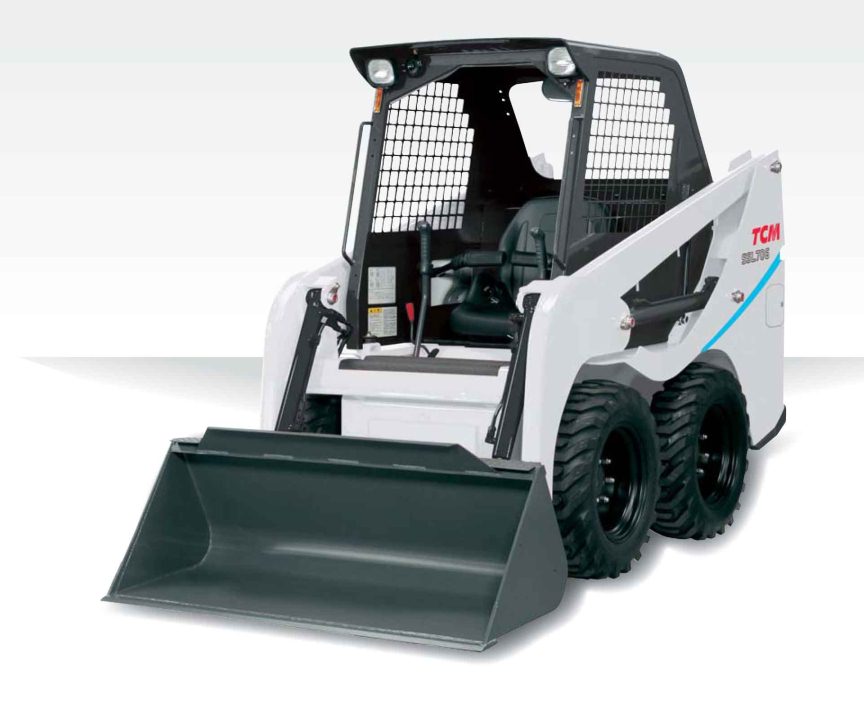

Skid Steer Loaders TCM SSL 705
Skid Steer Loaders TCM SSL 705
Skid Steer Loaders TCM SSL 705
Skid Steer Loaders TCM SSL 705

Technical specs - SSL 705 TCM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Rated operating capacity
430 kg
Standard tyres
27x8.50-25-6PR
Bucket width
1.23 m
Bucket capacity
0.22 m³
Transport length
2.83 m
Transport width
1.18 m
Transport height
1.83 m
Travel speed
11.5 km/h
Lifting force
15.7 kN
Engine manuf.
Kubota
Engine type
V1505
Engine power
20.1 kW
Displacement
1.5 l
Revolutions at max torque
1600 rpm
Max. torque
90 Nm
No. of cylinders
4
Cylinder bore x stroke
50 x 703 mm

More technical details, like: weight, track width, driver protection, steering mode, max. discharge height, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

TCM SSL 705 FAQ

When was the TCM SSL 705 manufactured?

The TCM SSL 705 was first produced in 2024.

What are the transport dimensions of the TCM SSL 705 skid steer loader?

The TCM SSL 705 has a transport length of 2.83 meters, a transport width of 1.18 meters, and a transport height of 1.83 meters.

What is the travel speed of the TCM SSL 705 skid steer loader?

The TCM SSL 705 has a travel speed of 11.5 km/h.

What are the standard tyre specifications of the TCM SSL 705 skid steer loader?

The TCM SSL 705 skid steer loader is equipped with standard tyres sized 27x8.50-25-6PR.

What is the lifting force of the TCM SSL 705 skid steer loader?

The TCM SSL 705 skid steer loader does not have power rating data available, but it has a lifting force of 15.7 kN.

What is the material handling capacity of the TCM SSL 705 skid steer loader?

The TCM SSL 705 skid steer loader has a rated operating capacity of 430 kg.

What are the specifications of the primary work tool on the TCM SSL 705 skid steer loader?

The primary work tool of the TCM SSL 705 skid steer loader has a bucket capacity of 0.22 cubic meters and a bucket width of 1.23 meters.
