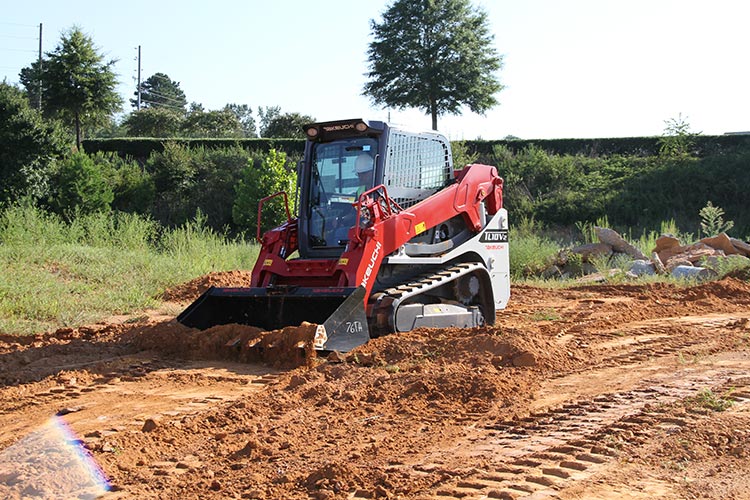

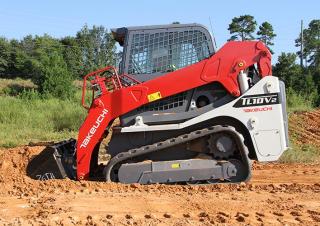

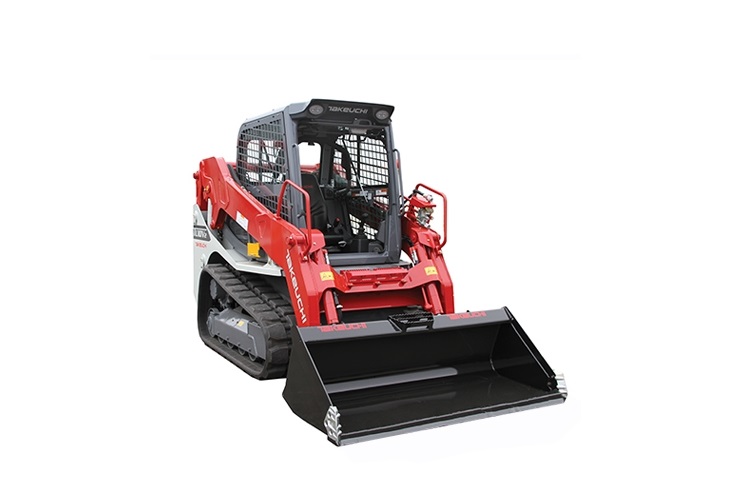

TL 10 V2 Takeuchi TL 10 V2 Specifications & Technical Data (2018—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - TL 10 V2 Takeuchi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.66 t
- Rated operating capacity
- 1145 kg
- Track width
- 400 mm
- Bucket width
- 1.88 m
- Driver protection
- Kb
- Transport length
- 3.68 m
- Transport width
- 1.74 m
- Transport height
- 2.27 m
- Travel speed
- 11.3 km/h
- Lifting force
- 24 kN
- Model series
- TL
- Engine manuf.
- Kubota
- Engine type
- V3307-CR-TE5B
- Engine power
- 54.6 kW
- Displacement
- 3.331 l
- Revolutions at max torque
- 2600 rpm
- Max. torque
- 261.1 Nm
- Emission level
- EU Stage V / EPA Tier 4
More technical details, like: standard tyres, bucket capacity, steering mode, max. discharge height, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
Download datasheets (PDF)
Takeuchi TL 10 V2 FAQ
How much does the Takeuchi TL 10 V2 skid steer loader weigh?
What are the transport dimensions of the Takeuchi TL 10 V2 skid steer loader?
What is the travel speed of the Takeuchi TL 10 V2 skid steer loader?
What is the track width of the Takeuchi TL 10 V2 skid steer loader?
What is the lifting force of the Takeuchi TL 10 V2 skid steer loader, given that no power rating data is available?
What is the rated operating capacity of the Takeuchi TL 10 V2 skid steer loader?
What is the bucket width of the Takeuchi TL 10 V2 skid steer loader?
What operator safety features does the Takeuchi TL 10 V2 have?
