SWL4018 Sunward SWL4018 Specifications & Technical Data (2020—2023)

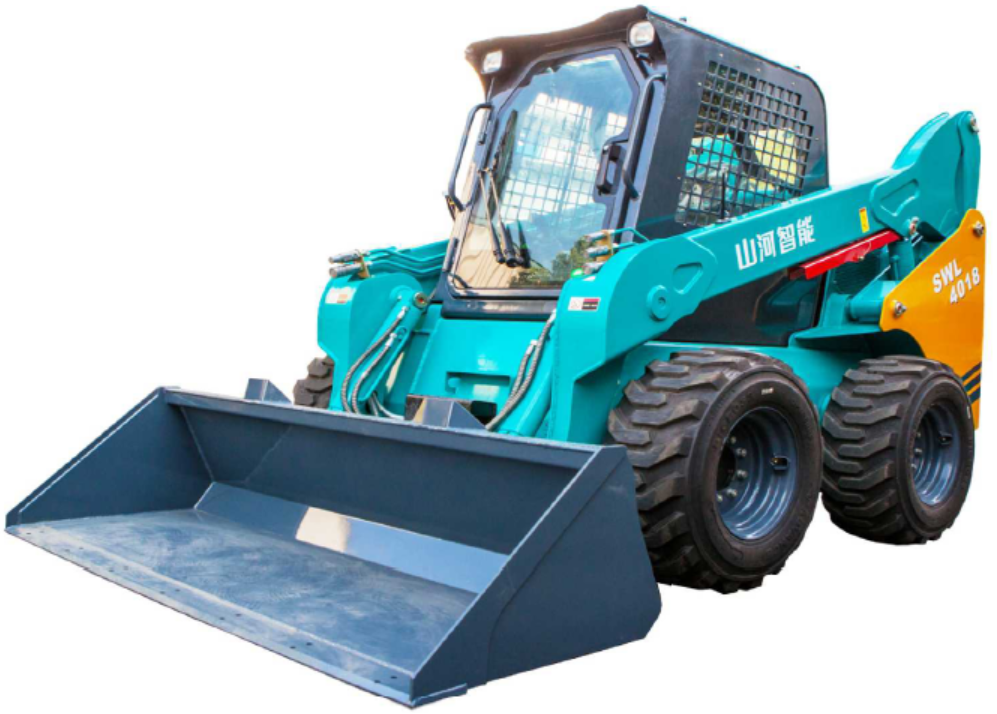

The Sunward SWL4018 is a skid steer loader manufactured by Sunward since 2020. It has a weight of 4 tons and a transport length of…

The Sunward SWL4018 is a skid steer loader manufactured by Sunward since 2020. It has a weight of 4 tons and a transport length of 3.75 meters. The bucket width is 2.02 meters, and the maximum discharge height is 2.47 meters. With a travel speed of 18 km/h, it has a transport width and height of 2.02 meters and 2.07 meters, respectively. The rated operating capacity of this construction machine is 1500 kilograms.

Skid Steer Loaders Sunward SWL4018

Technical specs - SWL4018 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4 t
Rated operating capacity
1500 kg
Bucket width
2.02 m
Driver protection
Kb
Transport length
3.75 m
Transport width
2.02 m
Transport height
2.07 m
Travel speed
18 km/h
Max. discharge height
2.47 m
Model series
SWL
Engine manuf.
Kubota
Engine type
V3800DI-T
Engine power
74 kW
Revolutions at max torque
1600 rpm
Max. torque
325 Nm
No. of cylinders
4
Emission level
T3. IIIA

More technical details, like: track width, standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Sunward SWL4018 FAQ

When was the Sunward SWL4018 manufactured?

The Sunward SWL4018 was manufactured from 2020 to 2023.

How much does the Sunward SWL4018 skid steer loader weigh?

The Sunward SWL4018 skid steer loader weighs 4 tons.

What are the transport dimensions of the Sunward SWL4018 skid steer loader?

The Sunward SWL4018 skid steer loader has a transport length of 3.75 meters, a transport width of 2.02 meters, and a transport height of 2.07 meters.

What is the travel speed of the Sunward SWL4018 skid steer loader?

The Sunward SWL4018 has a travel speed of 18 km/h.

What is the material handling capacity of the Sunward SWL4018 skid steer loader?

The Sunward SWL4018 skid steer loader has a rated operating capacity of 1500 kg and a maximum discharge height of 2.47 meters.

What is the bucket width of the Sunward SWL4018 skid steer loader?

The bucket width of the Sunward SWL4018 skid steer loader is 2.02 meters.

What driver protection feature does the Sunward SWL4018 have?

The Sunward SWL4018 has a cabin for driver protection.
