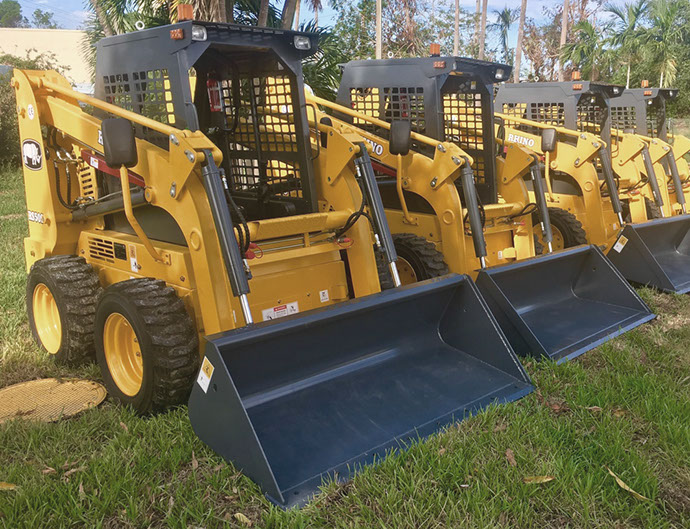

RS70-S RHINO RS70-S Specifications & Technical Data (2017—2026)

The RHINO RS70-S is a skid steer loader manufactured by RHINO since 2017. It has a weight of 4.26 tons and a transport length of 3…

The RHINO RS70-S is a skid steer loader manufactured by RHINO since 2017. It has a weight of 4.26 tons and a transport length of 3.666 meters. The bucket width is 1.98 meters, and the maximum discharge height is 2.71 meters. With a travel speed of 20 km/h, it has a transport width of 1.98 meters and a transport height of 4.234 meters. The rated operating capacity of this construction machine is 1600 kilograms.

Skid Steer Loaders RHINO RS70-S

Technical specs - RS70-S RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.26 t
Rated operating capacity
1600 kg
Standard tyres
10-16.5
Bucket width
1.98 m
Driver protection
KbR
Transport length
3.666 m
Transport width
1.98 m
Transport height
4.234 m
Travel speed
20 km/h
Max. discharge height
2.71 m
Model series
RS
Engine manuf.
Perkins
Engine type
1104D-44T
Engine power
75 kW

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

RHINO RS70-S FAQ

When was the RHINO RS70-S manufactured?

The RHINO RS70-S was first produced in 2017.

How much does the RHINO RS70-S skid steer loader weigh?

The RHINO RS70-S skid steer loader weighs 4.26 tons.

What are the transport dimensions of the RHINO RS70-S skid steer loader?

The RHINO RS70-S has a transport length of 3.67 meters, a transport width of 1.98 meters, and a transport height of 4.23 meters.

What is the travel speed of the RHINO RS70-S skid steer loader?

The RHINO RS70-S has a travel speed of 20 km/h.

What are the undercarriage specifications of the RHINO RS70-S skid steer loader?

The RHINO RS70-S skid steer loader is equipped with standard tyres sized 10-16.5.

What is the material handling capacity of the RHINO RS70-S skid steer loader?

The RHINO RS70-S skid steer loader has a rated operating capacity of 1600 kg and a maximum discharge height of 2.71 meters.

What is the bucket width of the RHINO RS70-S skid steer loader?

The RHINO RS70-S skid steer loader has a bucket width of 1.98 meters.

What operator safety and support features does the RHINO RS70-S have?

The RHINO RS70-S is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a RHINO RS70-S Skid steer loader (2017u20132025) worth?

The residual value of the RHINO RS70-S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
