701s Neuson 701s Specifications & Technical Data (2005—2008)

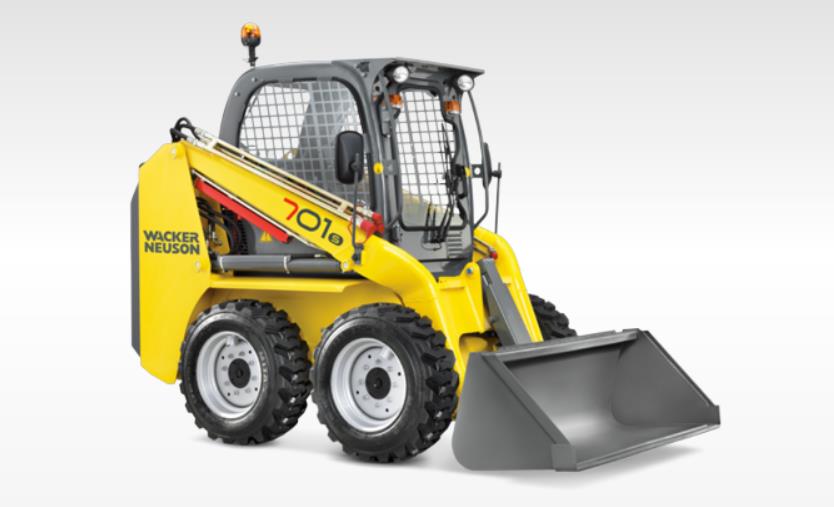

The Neuson 701s Skid Steer Loader, manufactured from 2005 to 2008, weighs 2.31 tons and has a transport length of 3.06 meters. It …

The Neuson 701s Skid Steer Loader, manufactured from 2005 to 2008, weighs 2.31 tons and has a transport length of 3.06 meters. It has a bucket capacity of 0.36 cubic meters and a bucket width of 1.52 meters. With a maximum discharge height of 2.325 meters, it can travel at a speed of 12 km/h. The transport width is 1.475 meters and the transport height is 1.947 meters. It has a rated operating capacity of 680 kilograms.

Skid Steer Loaders Neuson 701s

Technical specs - 701s Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.31 t
Rated operating capacity
680 kg
Standard tyres
10x16.5
Bucket width
1.52 m
Bucket capacity
0.36 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.06 m
Transport width
1.475 m
Transport height
1.947 m
Travel speed
12 km/h
Max. discharge height
2.325 m
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
34 kW
Displacement
2.19 l
Revolutions at max torque
2600 rpm

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model...

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Neuson 701s FAQ

When was the Neuson 701s manufactured?

The Neuson 701s was manufactured from 2005 to 2008.

How much does the Neuson 701s skid steer loader weigh?

The Neuson 701s skid steer loader weighs 2.31 tons.

What are the transport dimensions of the Neuson 701s skid steer loader?

The Neuson 701s has a transport length of 3.06 meters, a transport width of 1.48 meters, and a transport height of 1.95 meters.

What is the travel speed of the Neuson 701s skid steer loader?

The Neuson 701s has a travel speed of 12 km/h.

What is the standard tyre size of the Neuson 701s skid steer loader?

The Neuson 701s skid steer loader is equipped with standard tyres sized 10x16.5.

What is the steering mode of the Neuson 701s skid steer loader?

The Neuson 701s skid steer loader has tank steering.

What is the material handling capacity of the Neuson 701s skid steer loader?

The Neuson 701s skid steer loader has a rated operating capacity of 680 kg and a maximum discharge height of 2.33 meters.

What are the bucket specifications of the Neuson 701s skid steer loader?

The Neuson 701s skid steer loader has a bucket capacity of 0.36 cubic meters and a bucket width of 1.52 meters.

What operator safety features does the Neuson 701s skid steer loader have?

The Neuson 701s skid steer loader is equipped with a cabin that includes ROPS for driver protection.

How much is a Neuson 701s Skid steer loader (2005u20132008) worth?

The residual value of the Neuson 701s depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
