N 35 Neumeier N 35 Specifications & Technical Data (2012—2020)

The Neumeier N 35 is a skid steer loader manufactured by Neumeier since 2012. It has a weight of 1.36 tons and a transport length …

The Neumeier N 35 is a skid steer loader manufactured by Neumeier since 2012. It has a weight of 1.36 tons and a transport length of 2.775 meters. The bucket width is 1.2 meters, and the maximum discharge height is 2.16 meters. It has a travel speed of 10 km/h, with a transport width of 1.065 meters and a transport height of 1.815 meters. The rated operating capacity is 900 kilograms.

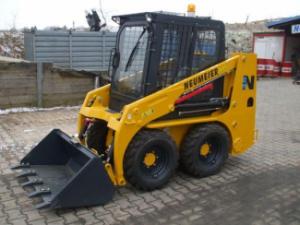

Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35
Skid Steer Loaders Neumeier N 35

Technical specs - N 35 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.36 t
Rated operating capacity
900 kg
Standard tyres
23x570-12.4
Bucket width
1.2 m
Driver protection
KbR
Steering mode
PL
Transport length
2.775 m
Transport width
1.065 m
Transport height
1.815 m
Travel speed
10 km/h
Max. discharge height
2.16 m
Model series
N
Engine manuf.
Perkins
Engine type
404D-15
Engine power
24.6 kW
Displacement
1.51 l
Revolutions at max torque
2800 rpm
No. of cylinders
4
Emission level
IIIA

More technical details, like: track width, bucket capacity, lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Neumeier N 35 FAQ

When was the Neumeier N 35 manufactured?

The Neumeier N 35 was first produced in 2012.

How much does the Neumeier N 35 skid steer loader weigh?

The Neumeier N 35 skid steer loader weighs 1.36 tons.

What are the transport dimensions of the Neumeier N 35 skid steer loader?

The Neumeier N 35 has a transport length of 2.78 meters, a transport width of 1.07 meters, and a transport height of 1.82 meters.

What is the travel speed of the Neumeier N 35 skid steer loader?

The Neumeier N 35 skid steer loader has a travel speed of 10 km/h.

What are the undercarriage tyre specifications of the Neumeier N 35 skid steer loader?

The Neumeier N 35 skid steer loader is equipped with standard tyres sized 23x570-12.4.

What is the steering mode of the Neumeier N 35 skid steer loader?

The Neumeier N 35 skid steer loader has a steering mode of tank steering.

What is the material handling capacity of the Neumeier N 35 skid steer loader?

The Neumeier N 35 has a rated operating capacity of 900 kg and a maximum discharge height of 2.16 meters.

What is the bucket width of the Neumeier N 35 skid steer loader?

The bucket width of the Neumeier N 35 skid steer loader is 1.2 meters.

What operator safety and support features does the Neumeier N 35 skid steer loader have?

The Neumeier N 35 skid steer loader features a cabin with ROPS for driver protection.
